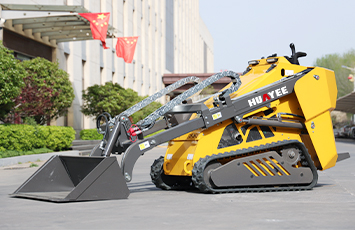

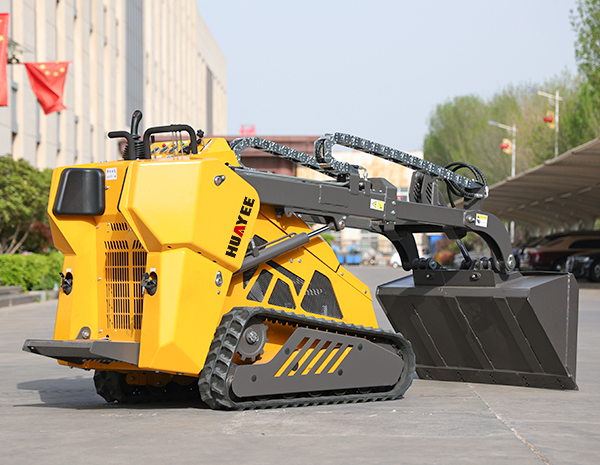

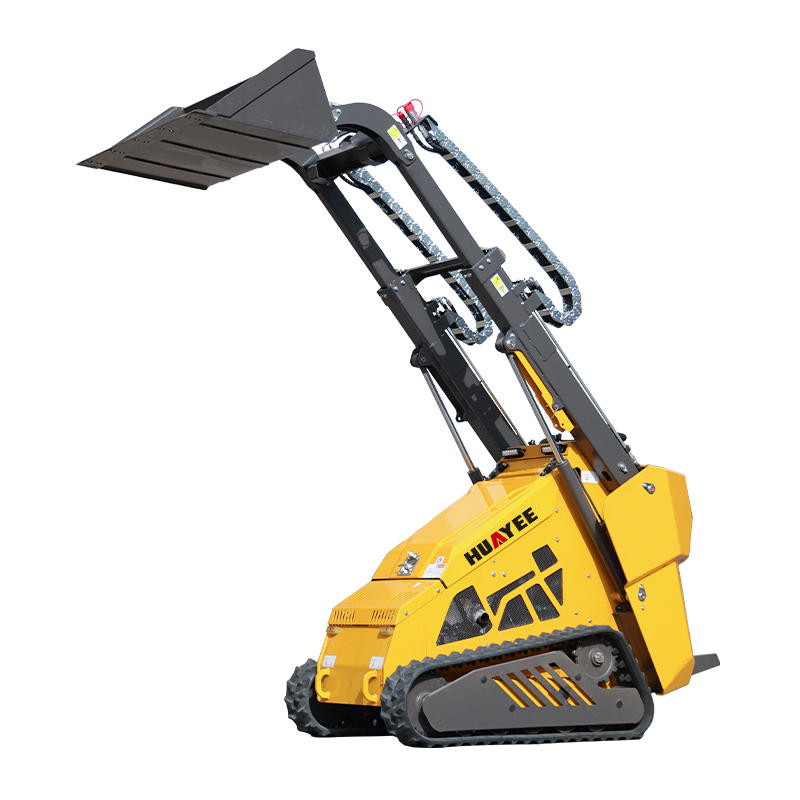

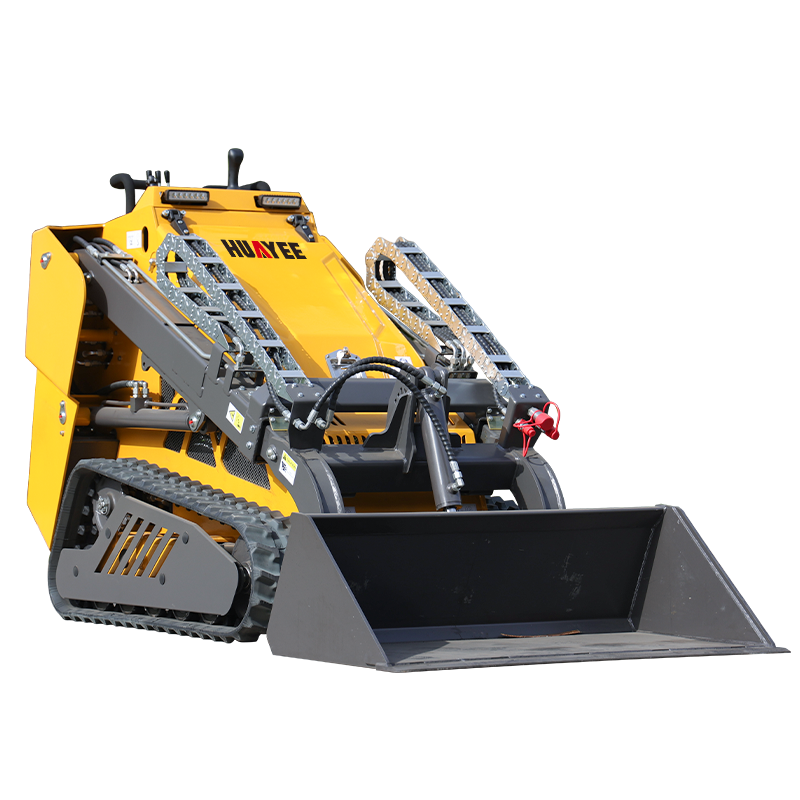

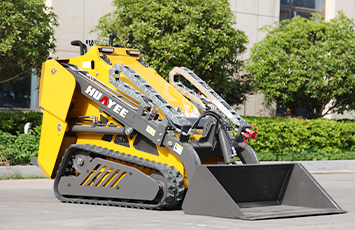

  • HY680S Mini Skid Steer Loader

    The skid steer loader is also called a multi-purpose engineering vehicle. It is a wheeled special chassis equipment that uses the difference in the linear velocity of the wheels on both sides to realize the steering of the vehicle. It has the characteristics of flexible steering, compact body and can be equipped with multi-function tools.


    No operating license required
    		Easy to operate
    		Factory direct sale
    Support customization
    		With CE, Epa/Euro V
    		With various accessories
    features and benefits
    • 1-HY680S-Mini-Skid-Steer-Loader-features-and-benefits
    • 2-HY680S-Mini-Skid-Steer-Loader-features-and-benefits
    • 3-HY680S-Mini-Skid-Steer-Loader-features-and-benefits
    • 4-HY680S-Mini-Skid-Steer-Loader-features-and-benefits
    • 5-HY680S-Mini-Skid-Steer-Loader-features-and-benefits
HY680S Mini Skid Steer Loader Request Price
EMAIL
PHONE
EMAIL
PHONE
navigation /products/mini skid steer loader

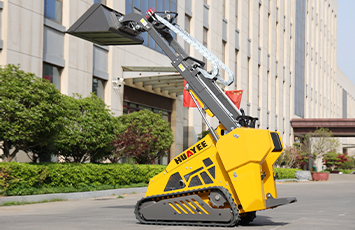

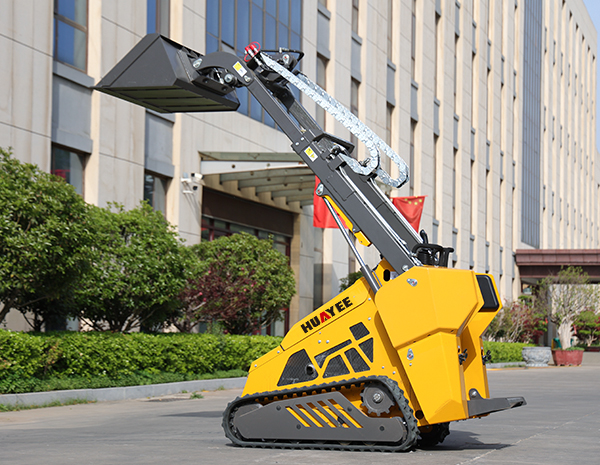

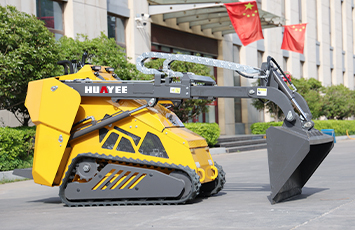

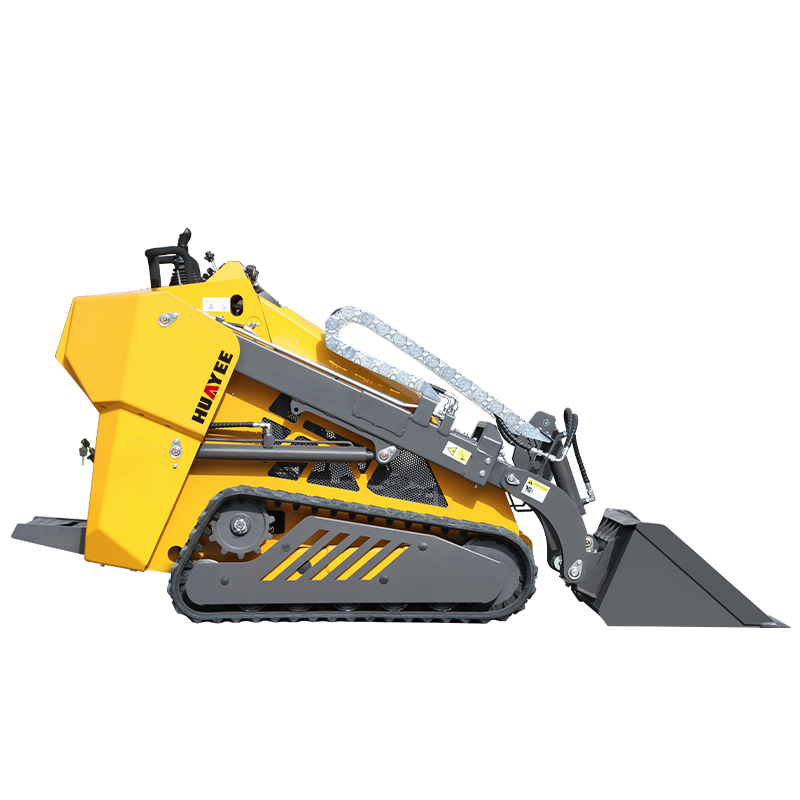

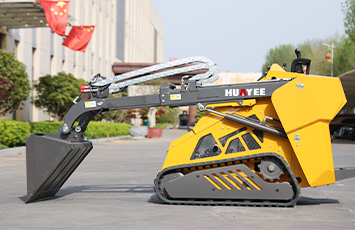

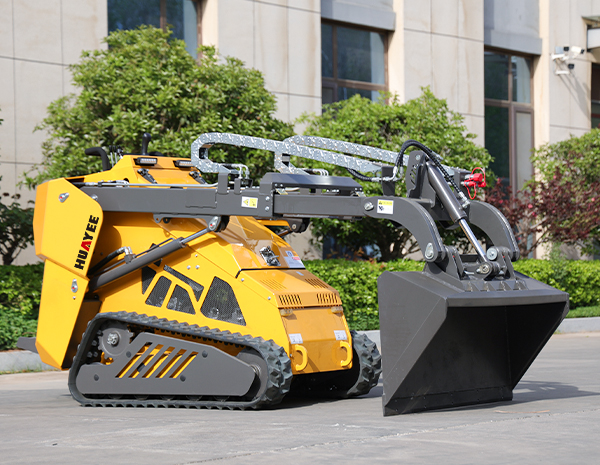

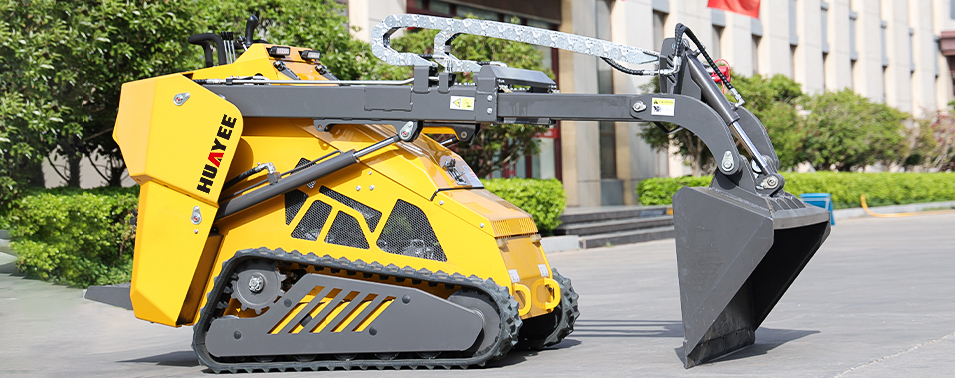

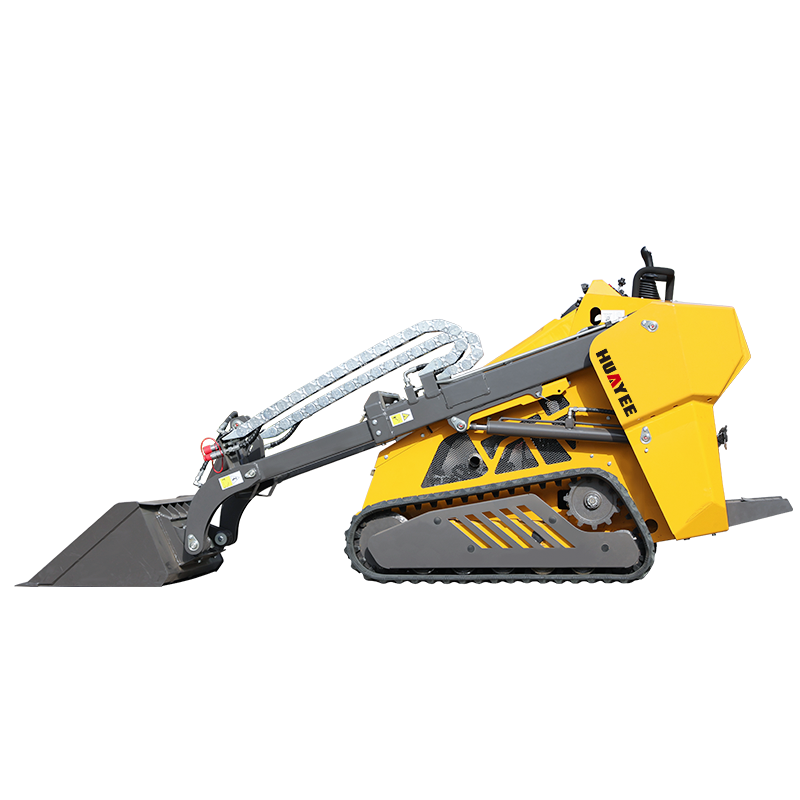

HY680S Mini Skid Steer Loader
  • Engine Power 24.7-25HP
  • Dimensions 2890×1235×1520mm
  • Operating Weight 1360-1380kg
contact us
EMAIL
PHONE
EMAIL
PHONE
  • HY680S Mini Skid Steer Loader-1
  • HY680S Mini Skid Steer Loader-2
  • HY680S Mini Skid Steer Loader-3
  • HY680S Mini Skid Steer Loader-4

  • CUSTOMIZATION SUPPORTED

    Logo/color/engine/etc


    We can provide you with exclusive customization services, and will produce the products you want according to your requirements, including but not limited to logo customization, color customization .

  • EPA/EURO V ENGINE


    High performance engines have durability and excellent fuel efficiency Our high-performance diesel engines deliver exceptional durability and superior fuel efficiency, ensuring maximum productivity with minimal downtime.

  • EASY OPERATING，SIMPLE MAINTENANCE


    Compact dimensions , Wide range of uses.
    It is an ideal choice for working in places where the site is small, the ground is undulating, and the job content changes frequently.It is suitable for infrastructure construction, industrial application, dock loading and unloading, urban streets, residences, barns, livestock houses, airport runways, etc., and can also be used as auxiliary equipment for large-scale construction machinery.

About Accessories
parmeters
Specifications
Rated load 780kg
Bucket volume 0.2m³
Maximum lifting force 1200kg
Working speed 0-5.8km/h
Rated pressure 17Mpa
Lifting time 4.1s
Lowering time 2.4s
Dumping time 1.5s
Gradability 30%
Working weight 1420kg/1400kg/1400kg
Brand Kubota/Perkins/Yanmar
Type Diesel engine, water-cooled, three-cylinder
Output power 18.2 kW/3000 rpm,18.4 kW/2800 rpm,18.2 kW/3000 rpm
Maximum torque 70.4Nm/2200rpm,66.9Nm/2100rpm,64Nm/1900rpm
Engine oil 5.1L/4/3.4L
Pump pump Italy PWG/Bondioi&Pavesi
Hydraulic motor Denmark Danfoss
Valve Italy Hydrocontrol
Auxiliary system pressure 170
Auxiliary system flow 43L/min
Fuel tank 35L
Hydraulic oil tank 25L
