HY480X Mini Skid Steer Loader -
HY480X Mini Skid Steer Loader
The skid steer loader is also called a multi-purpose engineering vehicle. It is a wheeled special chassis equipment that uses the difference in the linear velocity of the wheels on both sides to realize the steering of the vehicle. It has the characteristics of flexible steering, compact body and can be equipped with multi-function tools.
No operating license required Easy to operate Factory direct sale Support customization With CE, Epa/Euro V With various accessories
-

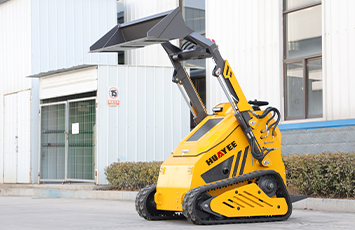

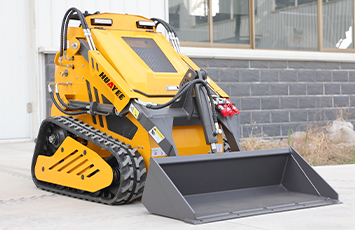

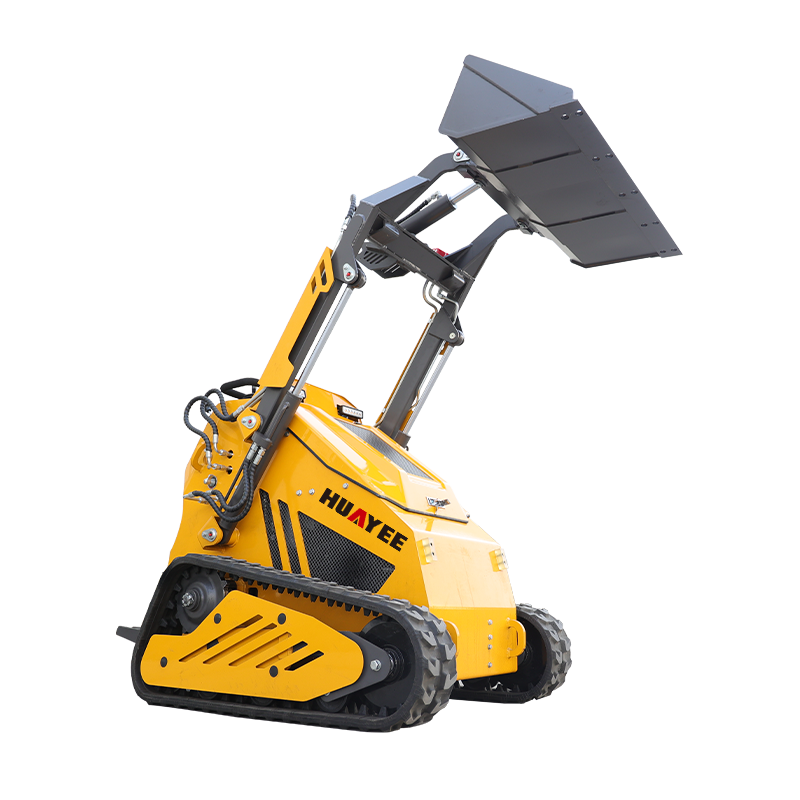

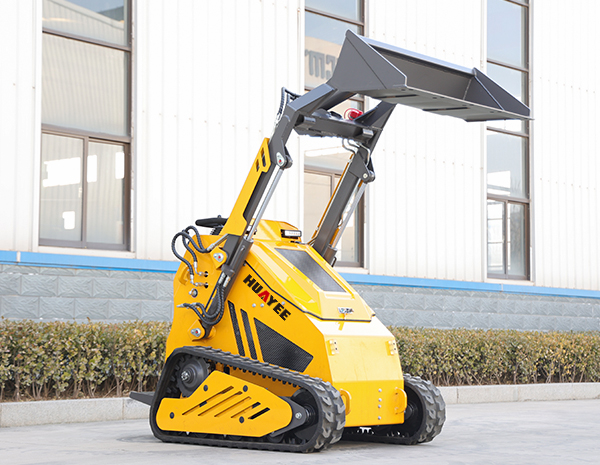

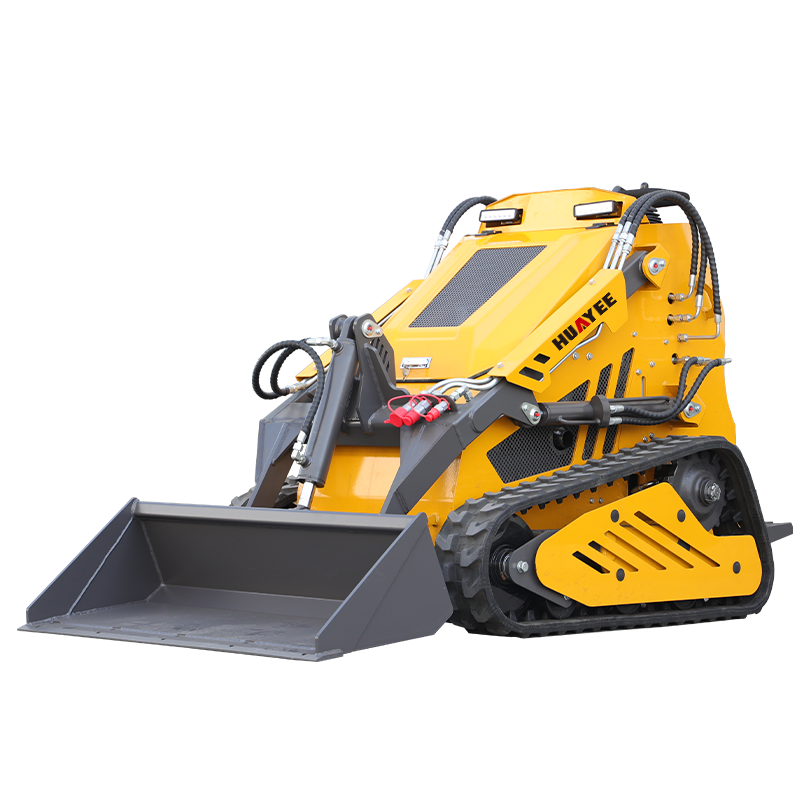

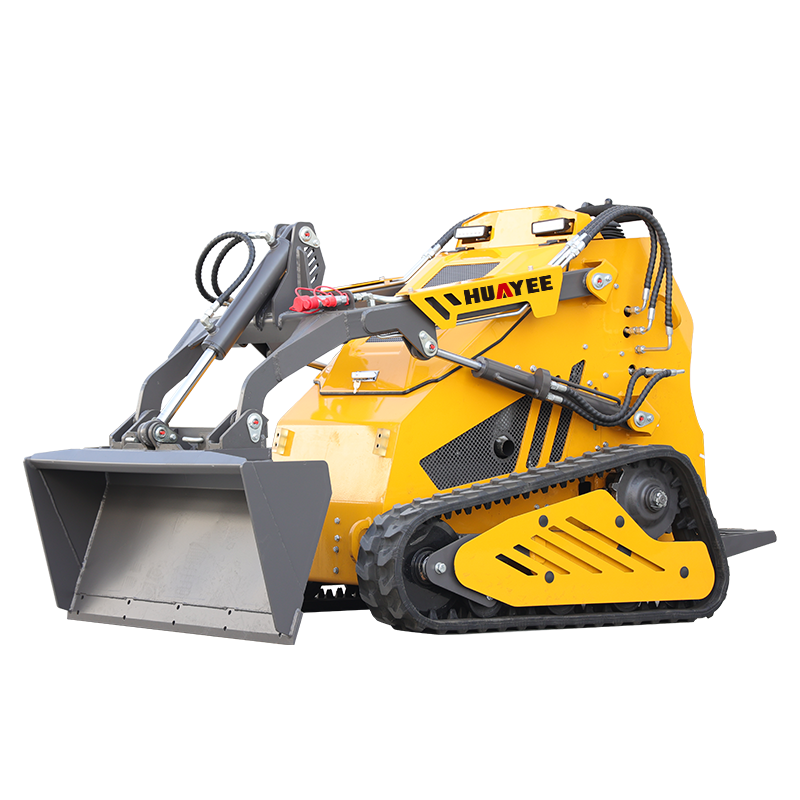

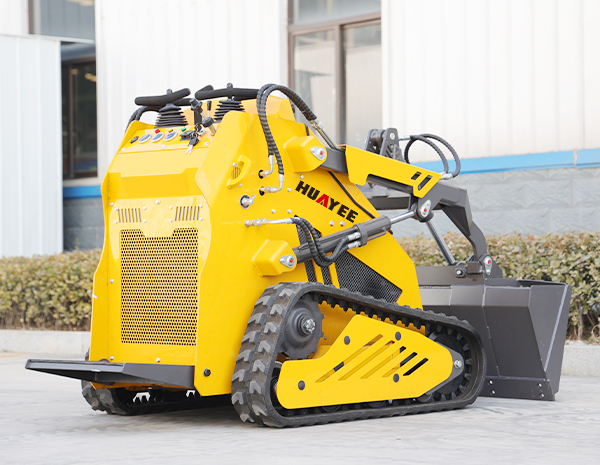

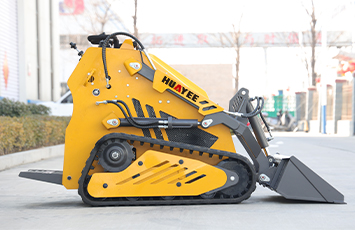

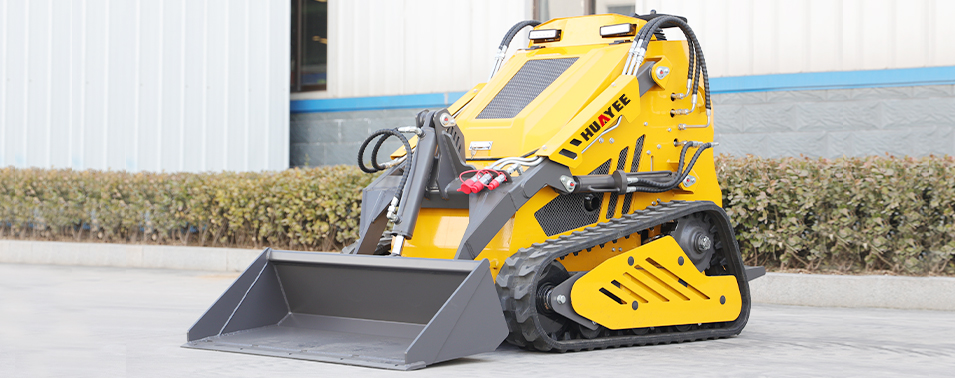

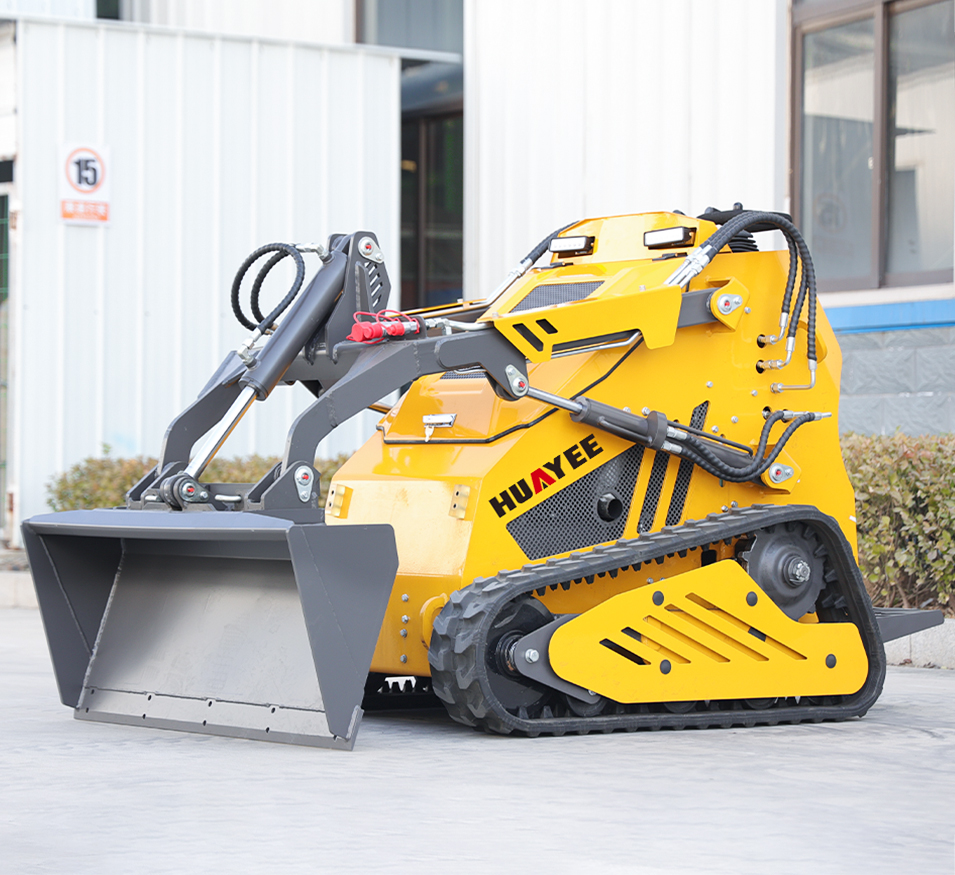

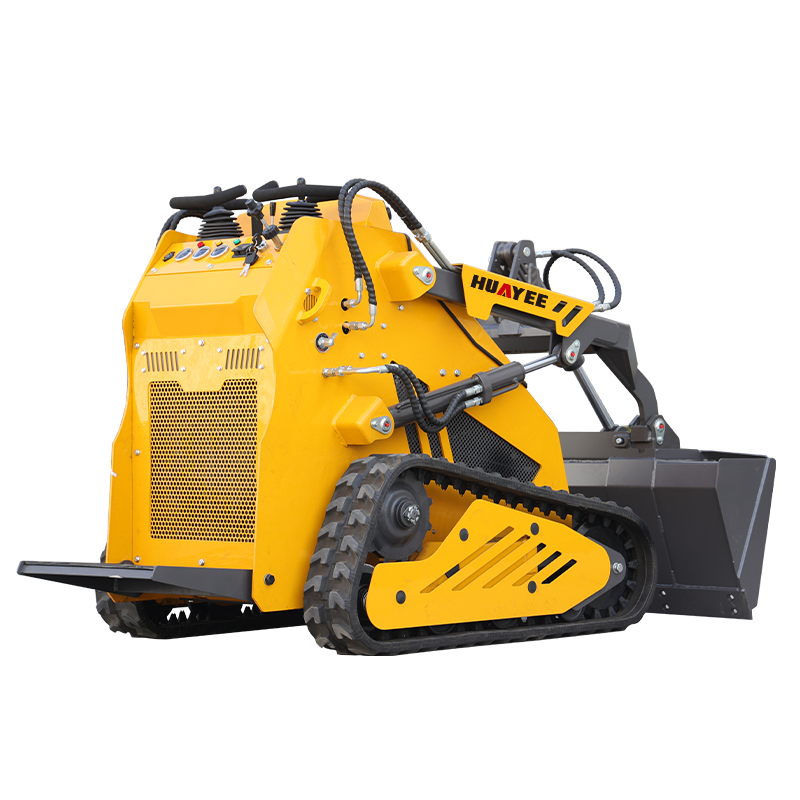

HY480X Mini Skid Steer Loader
- Engine Power 23HP
- Dimensions 2245×1140×1270mm
- Operating Weight 935-945kg
-
-
-
CUSTOMIZATION SUPPORTED
Logo/color/engine/etc
We can provide you with exclusive customization services, and will produce the products you want according to your requirements, including but not limited to logo customization, color customization .
-
-
-
EPA/EURO V ENGINE
High performance engines have durability and excellent fuel efficiency Our high-performance diesel engines deliver exceptional durability and superior fuel efficiency, ensuring maximum productivity with minimal downtime.
-
-
-
EASY OPERATING，SIMPLE MAINTENANCE
Compact dimensions , Wide range of uses.
It is an ideal choice for working in places where the site is small, the ground is undulating, and the job content changes frequently.It is suitable for infrastructure construction, industrial application, dock loading and unloading, urban streets, residences, barns, livestock houses, airport runways, etc., and can also be used as auxiliary equipment for large-scale construction machinery.
| Specifications | |
| Rated Load | 400kg |
| Bucket Volume | 0.15m³ |
| Maximum Lifting Force | 800kg |
| Working Speed | 0-4.1km/h |
| Rated Pressure | 17Mpa |
| Lifting Time | 4.8s |
| Lowering Time | 3.4s |
| Dumping Time | 2.5s |
| Gradability | 30% |
| Working Weight | 935kg/945kg |
| Brand | Briggs & Stratton/Runtong |
| Type | Gasoline engine, V-twin |
| Output Power | 23HP/3600rpm |
| Fuel Consumption | ≤6.7L/h/≤6.7L/h |
| Starting Method | Electric start |
| Fuel Tank | 25L |
| Engine Oil | 1.7L/1.6L |
| Hydraulic Tank | 25L |
