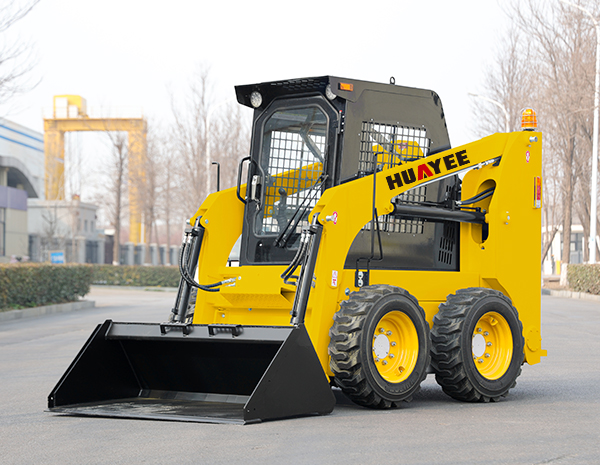

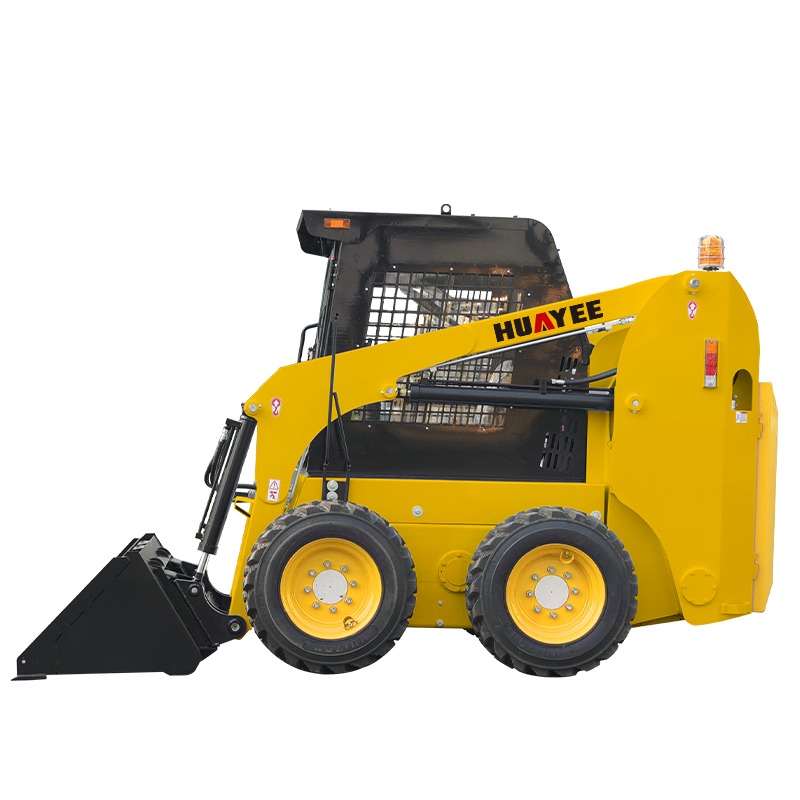

    HJC45 Skid Steer Loader
    Picture Viewer
    Request Price
    EMAIL
    PHONE
    EMAIL
    PHONE
  • HJC45 Skid Steer Loader

    The skid steer loader is also called a multi-purpose engineering vehicle. It is a wheeled special chassis equipment that uses the difference in the linear velocity of the wheels on both sides to realize the steering of the vehicle. It has the characteristics of flexible steering, compact body and can be equipped with multi-function tools.


    No operating license required
    		Easy to operate
    		Factory direct sale
    Support customization
    		With CE, Epa/Euro V
    		With various accessories
    features and benefits

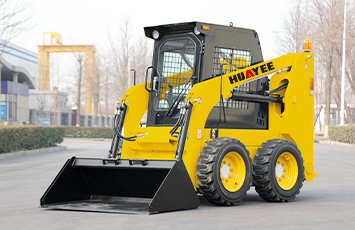

    • 1-HJC45-Skid-Steer-Loader-features-and-benefits

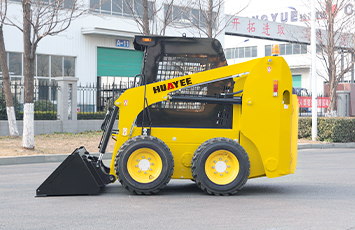

    • 2-HJC45-Skid-Steer-Loader-features-and-benefits

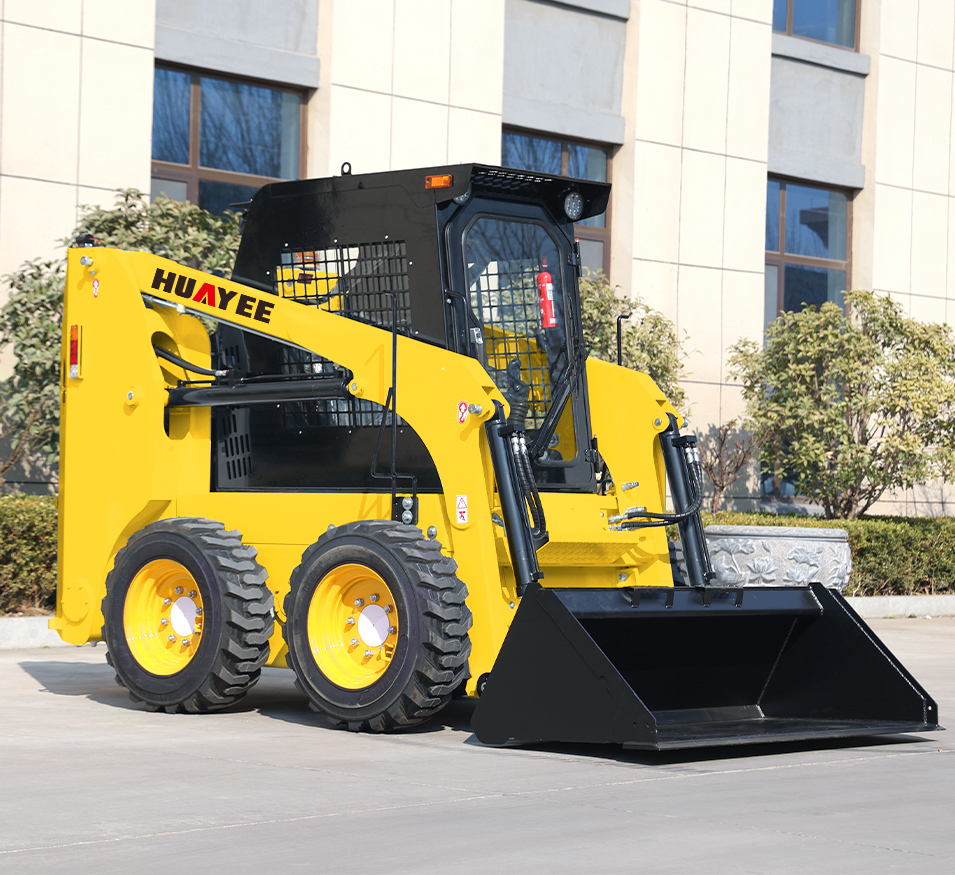

    • 3-HJC45-Skid-Steer-Loader-features-and-benefits

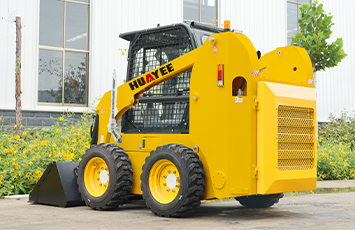

    • 4-HJC45-Skid-Steer-Loader-features-and-benefits
    • 5-HJC45-Skid-Steer-Loader-features-and-benefits
HJC45 Skid Steer Loader Request Price
EMAIL
PHONE
EMAIL
PHONE
navigation /products/mini skid steer loader
HJC45 Skid Steer Loader
  • Engine Power 50HP
  • Dimensions 3350×1720×2150mm
  • Operating Weight 3000kg
contact us
EMAIL
PHONE
EMAIL
PHONE

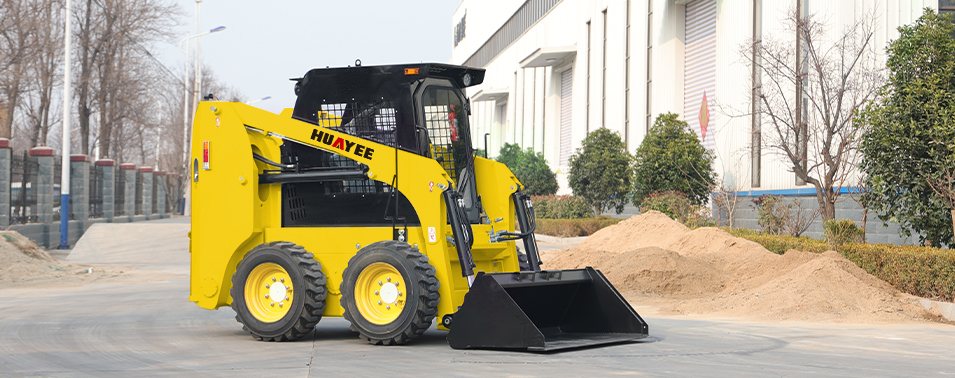

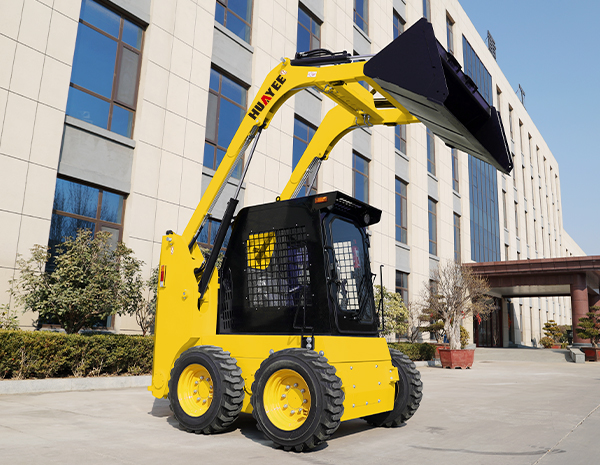

  • HJC45 Skid Steer Loader-1

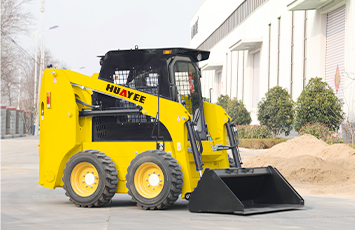

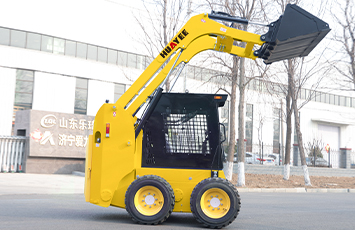

  • HJC45 Skid Steer Loader-2

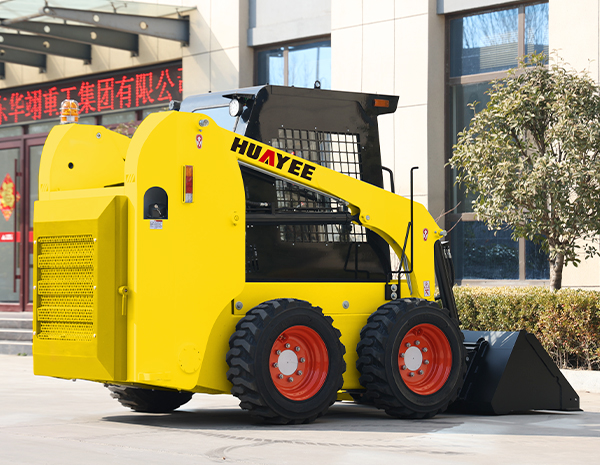

  • HJC45 Skid Steer Loader-4

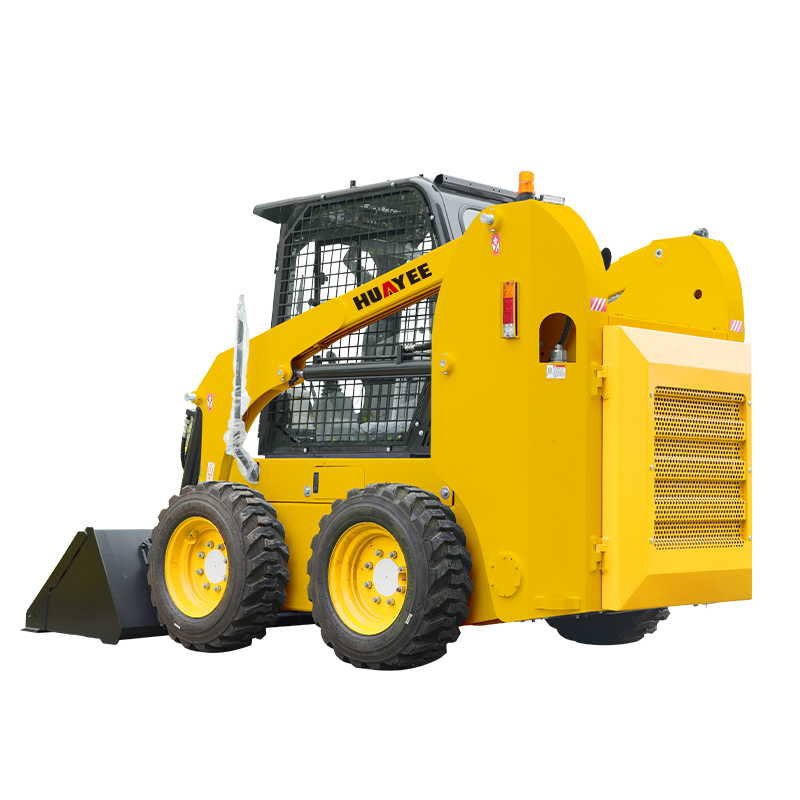

  • HJC45 Skid Steer Loader

  • CUSTOMIZATION SUPPORTED

    Logo/color/engine/etc


    We can provide you with exclusive customization services, and will produce the products you want according to your requirements, including but not limited to logo customization, color customization .

  • EPA/EURO V ENGINE


    High performance engines have durability and excellent fuel efficiency Our high-performance diesel engines deliver exceptional durability and superior fuel efficiency, ensuring maximum productivity with minimal downtime.

  • EASY OPERATING，SIMPLE MAINTENANCE


    Compact dimensions , Wide range of uses.
    It is an ideal choice for working in places where the site is small, the ground is undulating, and the job content changes frequently.It is suitable for infrastructure construction, industrial application, dock loading and unloading, urban streets, residences, barns, livestock houses, airport runways, etc., and can also be used as auxiliary equipment for large-scale construction machinery.

About Accessories
parmeters
Specifications
Product Parameters HJC45
Rated operating capacity  700kg
Tipping load 1400kg
Bucket capacity 0.4-0.5m3
Operationg weight 3000kg
Max. travel speed 12km/h
Hydraulic pump flow 75L/min
Fuel tank capacity 70L
Tires 10-16.5NHS
Overall dimensions 3350×1720×2150mm
Height at maximum extension 3980mm
Height to bucket hinge pin 3080mm
Width with bucket 1730mm
Track width 1450mm
Wheelbase 991mm
Ground clearance 180mm
Dumping height 2380mm
Maximum reach 790mm
Rollback at ground 26°
Angle of departure 20°
Maker/Model XINCHAI 490
Net power 36.7kW/2500rpm
Type  4Cylinder in-line, Water cooled, 4 stroke, Diesel engine
Displacement 2.7L
