HY600F Mini Loader -

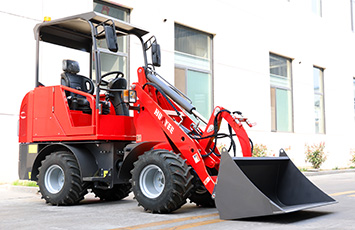

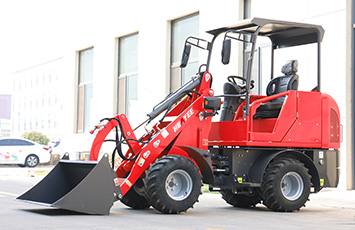

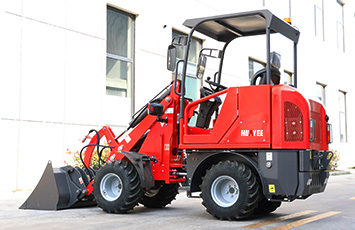

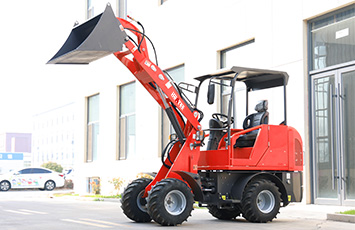

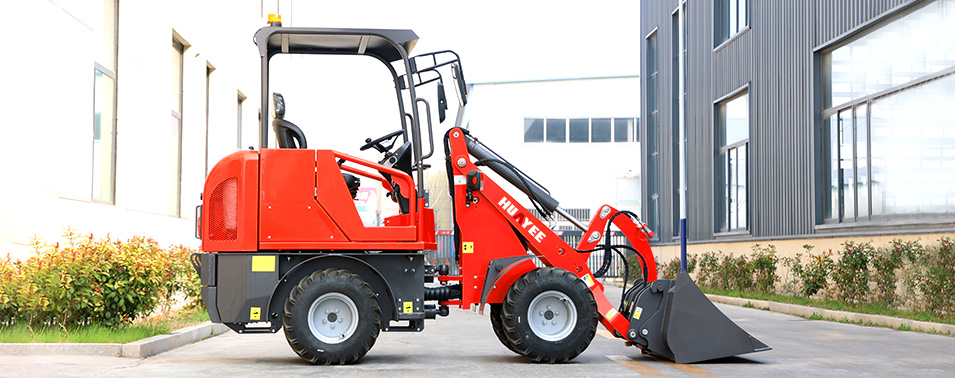

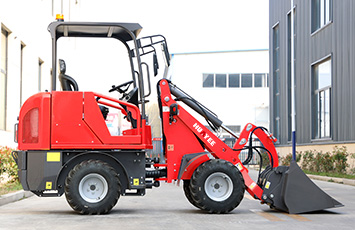

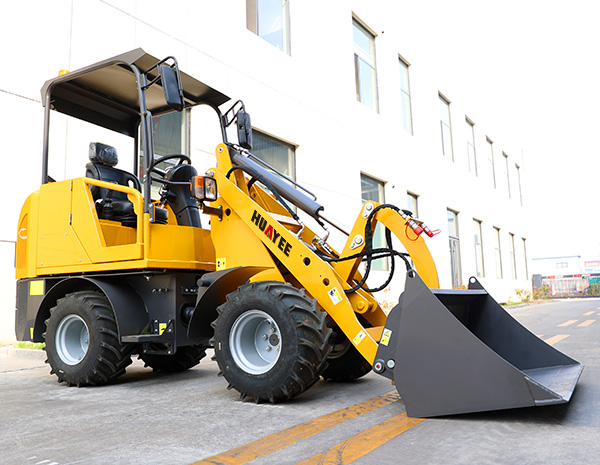

HY600F Mini Loader
The mini loader features a small turning radius, allowing it to replace larger machinery in confined work spaces. Its hydraulic system ensures smooth and reliable operation, ease of use, light steering, and low noise. The cab offers excellent visibility, with clearly marked and centrally located control levers and a comfortable leather seat to reduce operator fatigue.
No operating license required Easy to operate Factory direct sale Support customization With CE, Epa/Euro V With various accessories
-

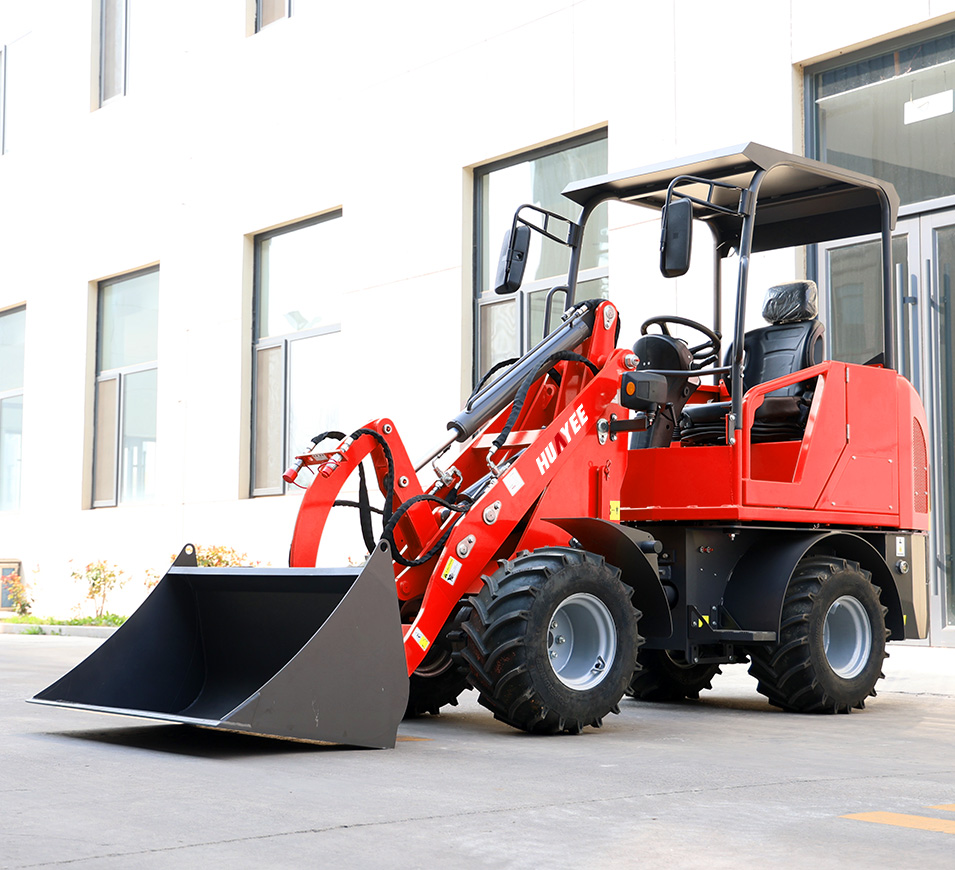

HY600F Mini Loader
The mini loader features a small turning radius, allowing it to replace larger machinery in confined work spaces. Its hydraulic system ensures smooth and reliable operation, ease of use, light steering, and low noise. The cab offers excellent visibility, with clearly marked and centrally located control levers and a comfortable leather seat to reduce operator fatigue.
- Max.lifting force 600kg
- Engine power 18.2kW
- Bucket capacity 0.28m³
-
-
-
CUSTOMIZATION SUPPORTED
Logo/color/engine/etc
We can provide you with exclusive customization services,and will produce the products you want according to your requirements, including but not limited to logo customization, color customization.
-
-
-

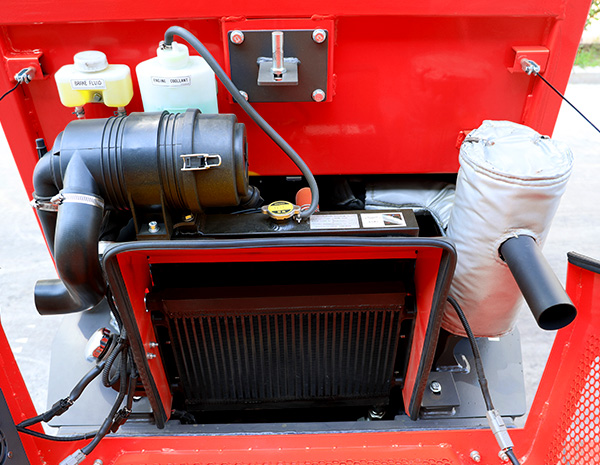

HIGH HORSEPOWER, POWERFUL PERFORMANCE
Equipped with a high-horsepower diesel engine, it provides ample power support for the operation of the entire machine, resulting in higher work efficiency.
-
-
-

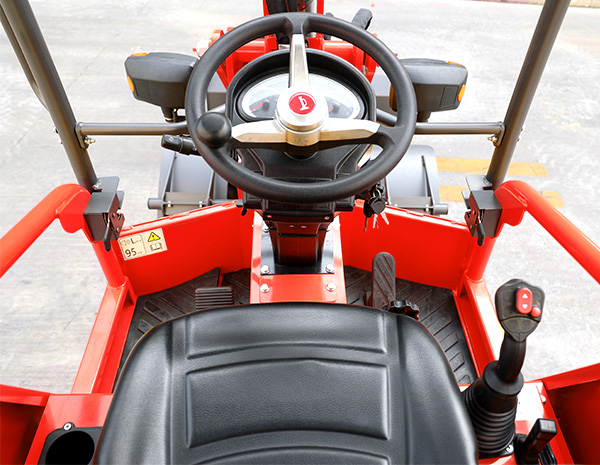

COMFORTABLE TO OPERATE, HIGHLY MANEUVERABLE
The hydraulic system controls the operation, ensuring smooth and reliable performance, ease of operation, light steering, and low noise. The cab offers excellent visibility, with clearly marked and centrally located control levers, and a comfortable leather seat to reduce operator fatigue.
| Max.tipping load | 1050kg |
| Bucket capacity | 0.28m³ |
| Max.lifting weight | 600kg |
| Driving speed | 0-10km/h |
| Rated pressure | 17Mpa |
| Rated flow rate | 120 L/min |
| Steering angle | 40° |
| Min.turing radius(inner/outer) | 1470mm/2710mm/2970mm |
| Weight | 1900kg |
| Engine model | Kubota D1105 |
| Net power | 18.2kW/3000rpm |
| Fuel consumption | ≤7.4 L/h |
| Startup method | Electric start |
| Fuel tank | 35L |
| Engine oil | 5.1L |
| Hydraulic oil tank | 28L |
| Operating voltage | 12V |
| Battery capacity | 65Ah |
| Tire model | 26*12-12 |
| Dimension | 4050*1175*2300mm |
