HY600E Mini Loader -

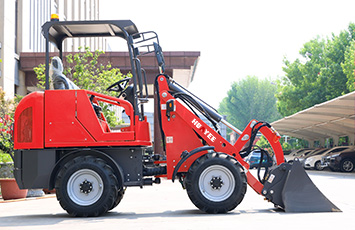

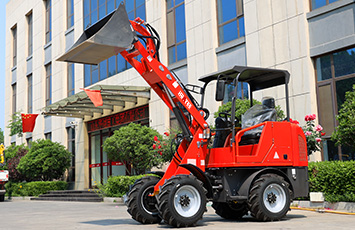

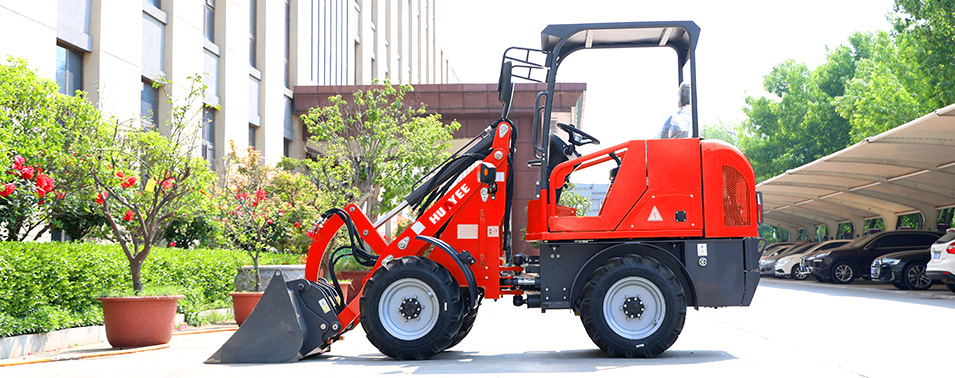

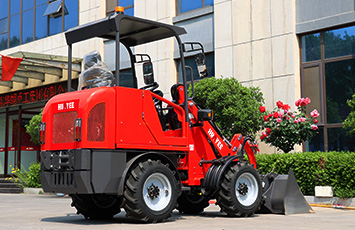

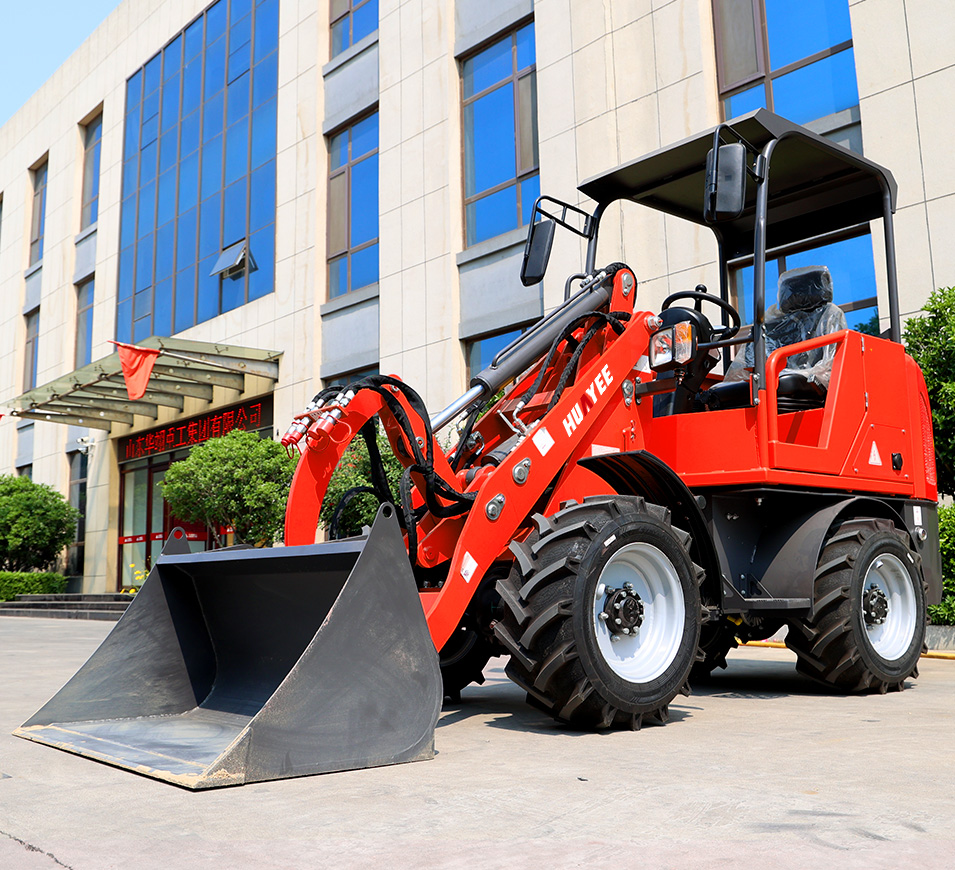

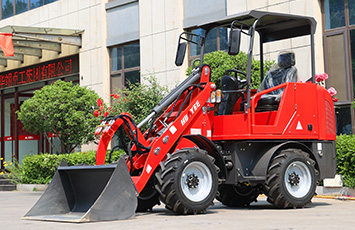

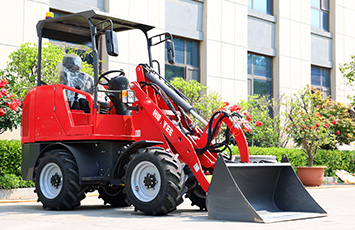

HY600E Mini Loader
The mini loader features a small turning radius, allowing it to replace larger machinery in confined work spaces. Its hydraulic system ensures smooth and reliable operation, ease of use, light steering, and low noise. The cab offers excellent visibility, with clearly marked and centrally located control levers and a comfortable leather seat to reduce operator fatigue.
No operating license required Easy to operate Factory direct sale Support customization With CE, Epa/Euro V With various accessories
-
HY600E Mini Loader
The mini loader features a small turning radius, allowing it to replace larger machinery in confined work spaces. Its hydraulic system ensures smooth and reliable operation, ease of use, light steering, and low noise. The cab offers excellent visibility, with clearly marked and centrally located control levers and a comfortable leather seat to reduce operator fatigue.
- Max.lifting force 600kg
- Battery capacity 72V/200Ah
- Bucket capacity 0.28m³
-
-
-

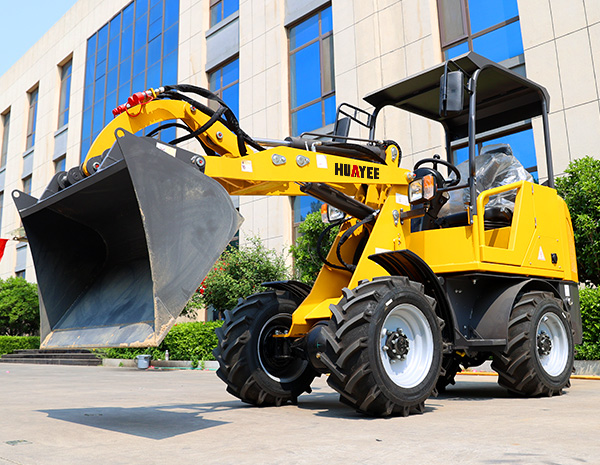

CUSTOMIZATION SUPPORTED
Logo/color/engine/etc
We can provide you with exclusive customization services,and will produce the products you want according to your requirements, including but not limited to logo customization, color customization.
-
-
-

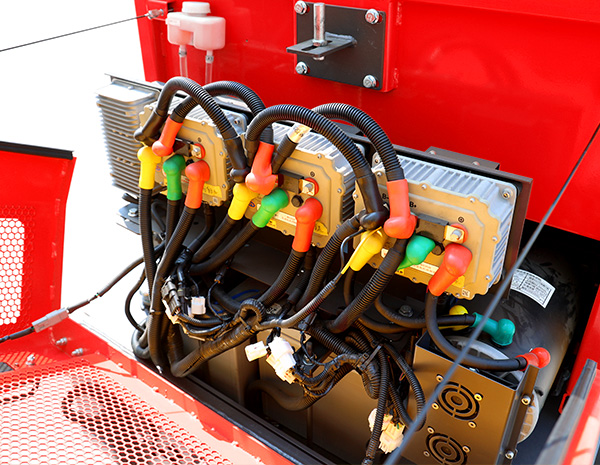

ENVIRONMENTAL PROTECTION AND ENERGY SAVING
Equipped with a large-capacity lead-acid battery, it has ample power, high efficiency, energy saving, low noise, zero emissions, and convenient maintenance.
-
-
-

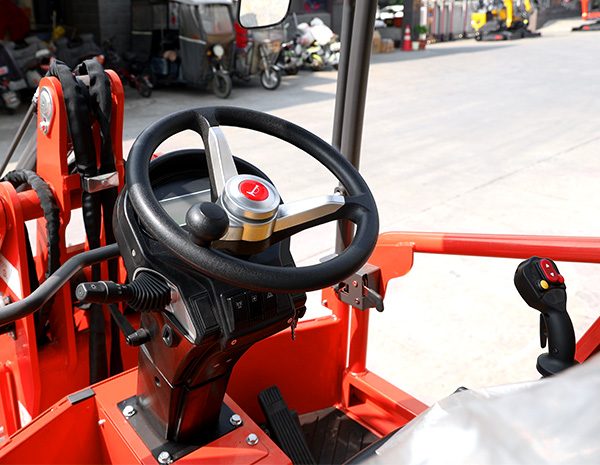

COMFORTABLE TO OPERATE, HIGHLY MANEUVERABLE
The hydraulic system controls the operation, ensuring smooth and reliable performance, ease of operation, light steering, and low noise. The cab offers excellent visibility, with clearly marked and centrally located control levers, and a comfortable leather seat to reduce operator fatigue.
| Max.tipping load | 1050kg |
| Bucket capacity | 0.28m³ |
| Max.lifting weight | 600kg |
| Driving speed | 0-10km/h |
| Rated pressure | 17Mpa |
| Rated flow rate | 30 L/min |
| Steering angle | 40° |
| Min.turing radius(inner/outer) | 1415mm/2770mm/2949mm |
| Weight | 2300kg |
| Battery type | Lead-acid batteries |
| Operating voltage | 72V |
| Cooling system | Air-cooled |
| Battery capacity | 200Ah |
| Tire model | 29*12.5-12 |
| Dimension | 4050*1280*2350mm |
