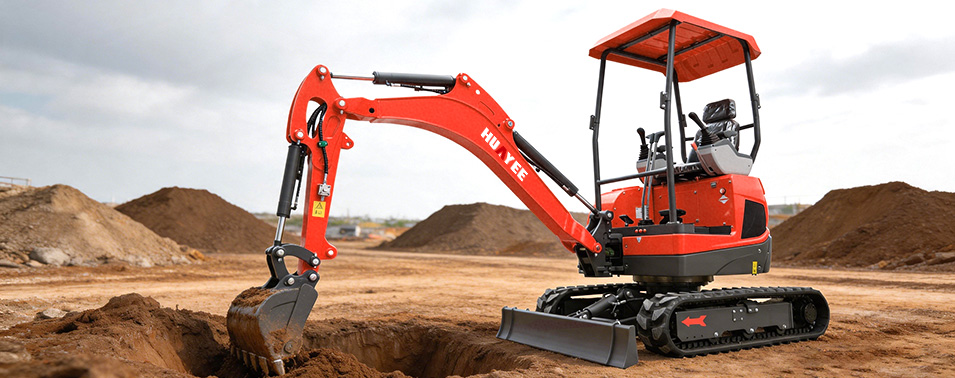

  • HY20U mini excavator for sale-small excavator

    Small excavators are very suitable for farm orchard and small construction site and rural families. Application scenarios include farm trenching, aqua toilet renovation, vegetable greenhouse trenching, green belt repair, etc.


    No operating license required
    		Easy to operate
    		Factory direct sale
    Support customization
    		With CE, Epa/Euro V
    		With various accessories
    features and benefits

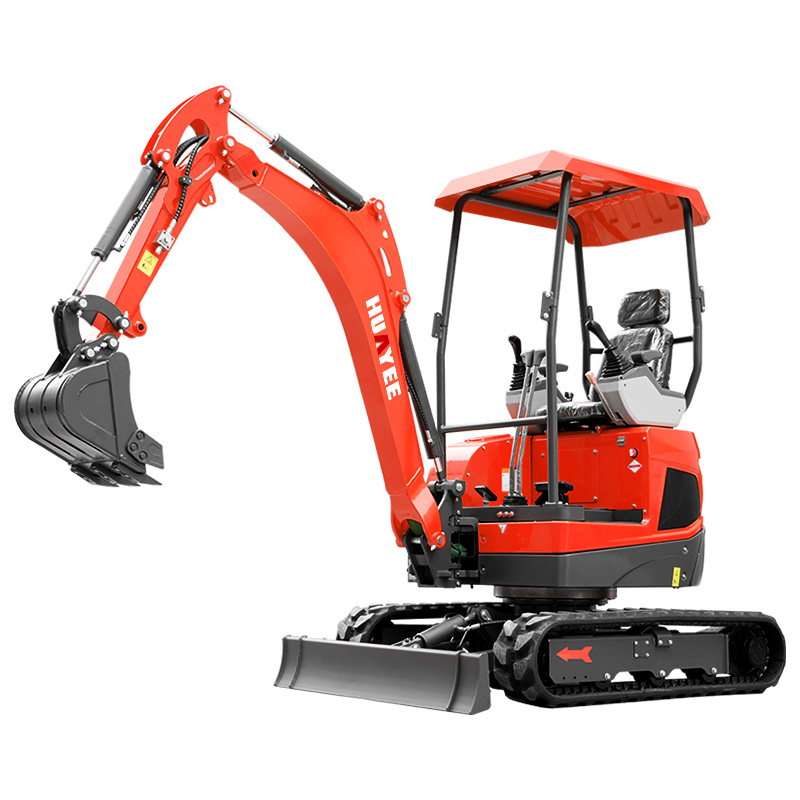

    • 1-HY20U MINI EXCAVATOR

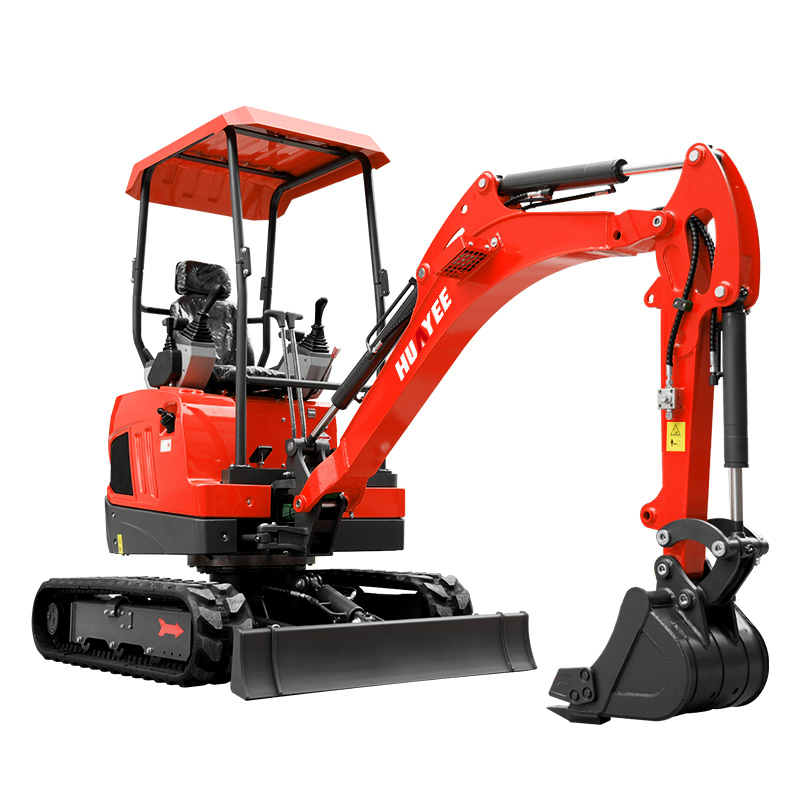

    • 2-HY20U MINI EXCAVATOR

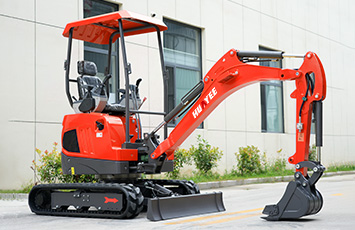

    • 3-HY20U MINI EXCAVATOR

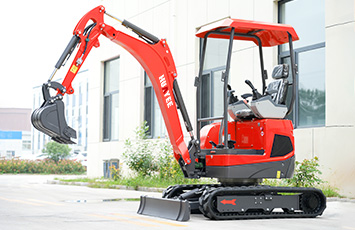

    • 4-HY20U MINI EXCAVATOR

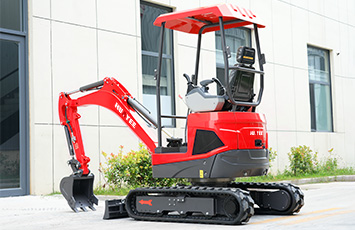

    • 5-HY20U MINI EXCAVATOR
HY20U mini excavator Request Price
NAME
PHONE
EMAIL
MESSAGE
NAME
PHONE
EMAIL
MESSAGE
navigation /products/mini excavator

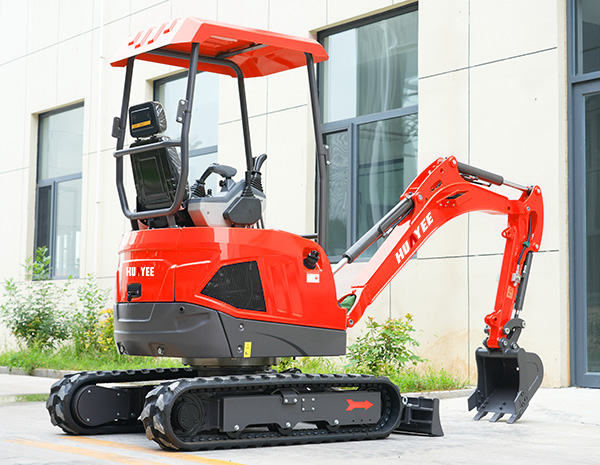

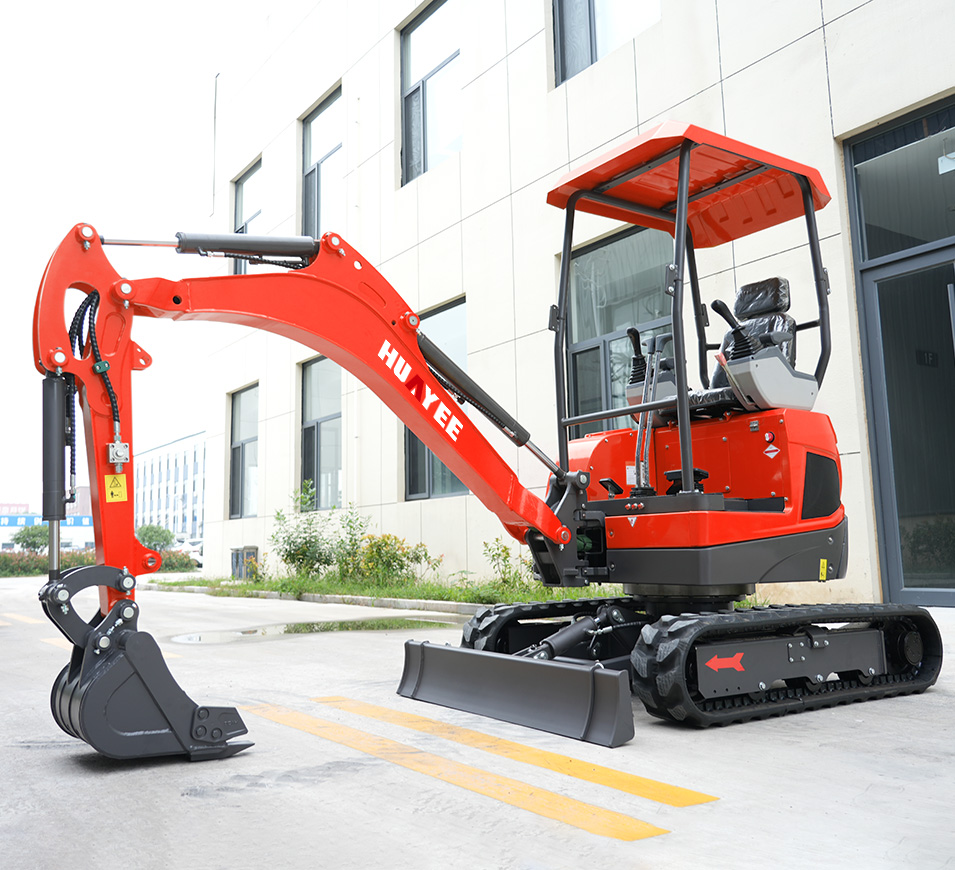

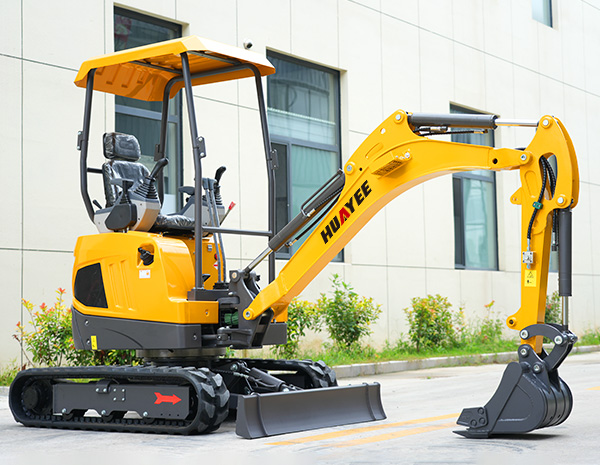

HY20U mini excavator

Flexible And Powerful


HY20U is a mini model excavator,It is suitable for working in outdoor environments such as farms and yards.

  • Operating Weight 2000KG
  • Bucket Capacity 0.04m³
  • Power 15.8HP
contact us
NAME
PHONE
EMAIL
MESSAGE
NAME
PHONE
EMAIL
MESSAGE

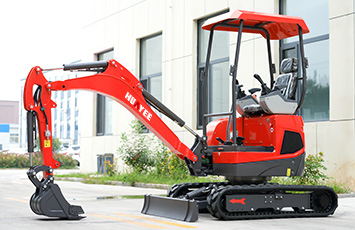

  • 1-HY20U MINI EXCAVATOR

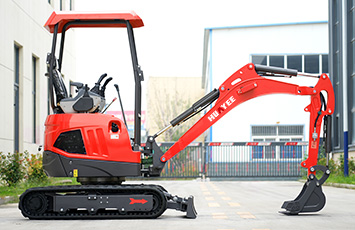

  • 2-HY20U MINI EXCAVATOR

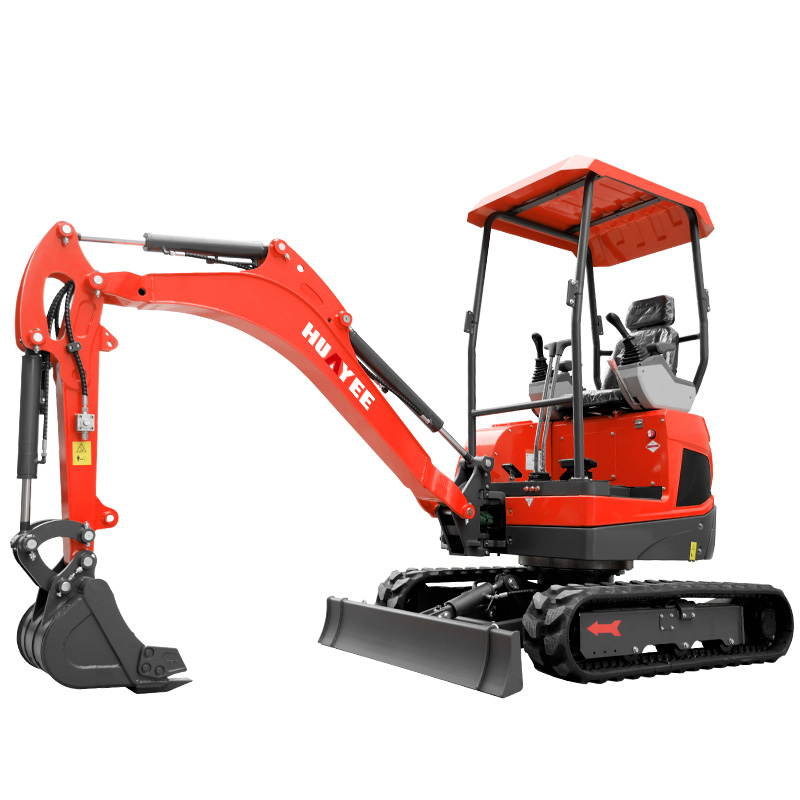

  • 3-HY20U MINI EXCAVATOR

  • CUSTOMIZATION SUPPORTED

    Logo/color/engine/accessories/etc


    We can provide you with exclusive customization services,and will produce the products you want according to your requirements, including but not limited to logo customization, color customization ,engine customization and accessories customization.

  • EPA/EURO V ENGINE.CE CERTIFICATED

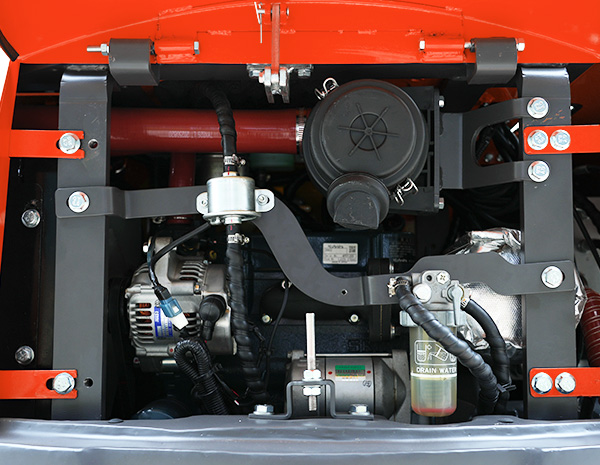

    Standard configuration includes a Kubota engine, employing advanced fuel injection technology to ensure complete combustion of fuel, reduce operating costs, comply with stringent environmental regulations, and utilize advanced emission control technology to reduce exhaust emissions.

  • SIMPLE CONTROL，EASY MAINTENANCE


    Compact dimensions , Safety Frame, rear opening engine compartment design Daily inspection and maintenance are simple and quick.

About Accessories
  • 3-HY20U MINI EXCAVATOR
  • 3-HY20U MINI EXCAVATOR
  • 3-HY20U MINI EXCAVATOR
  • 3-HY20U MINI EXCAVATOR
  • 3-HY20U MINI EXCAVATOR
  • 3-HY20U MINI EXCAVATOR
  • 3-HY20U MINI EXCAVATOR
  • 3-HY20U MINI EXCAVATOR
  • 3-HY20U MINI EXCAVATOR
  • 3-HY20U MINI EXCAVATOR
parmeters
Parameter
Operating Weight 2000kg
Bucket Capacity 0.04m³
Travel Speed 2/4 km/h
Swing Speed8 r/min
Maximum Grade Ability 30°
Dimensions3575*1300*2288mm
Engine
Engine Model Kubota D902
 Rated Net Power 11.8kW/2300rpm
Maximum Torque Speed 51.3N.m
Displacement 0.898L
Volume Of Fuel Tank 18L
Hydraulic Tank Capacity 20L
Engine Oil Capacity3.7L
Performance Specifications
Maximum Digging Height 3520mm
Maximum Dumping Height 2480mm
Maximum Digging Depth 2255mm
Maximum Vertical Wall Digging Depth 1715mm
Maximum Digging Radius 3890mm
Minimum Swing Radius1495mm
