  • HY12U MINI EXCAVATOR for sale-small excavator

    Small excavators are very suitable for farm orchard and small construction site and rural families. Application scenarios include farm trenching, aqua toilet renovation, vegetable greenhouse trenching, green belt repair, etc.


    No operating license required
    		Easy to operate
    		Factory direct sale
    Support customization
    		With CE, Epa/Euro V
    		With various accessories
    features and benefits

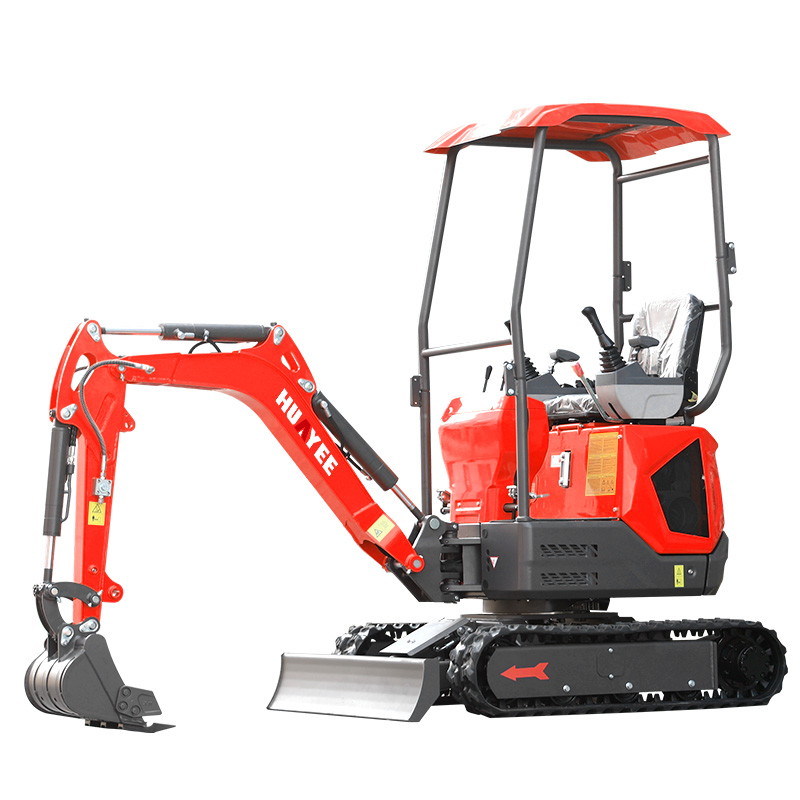

    • 1.HY12U-Mini-Excavator

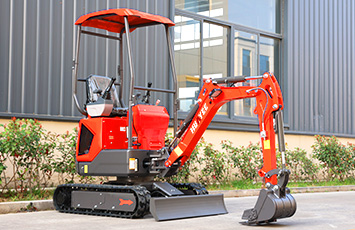

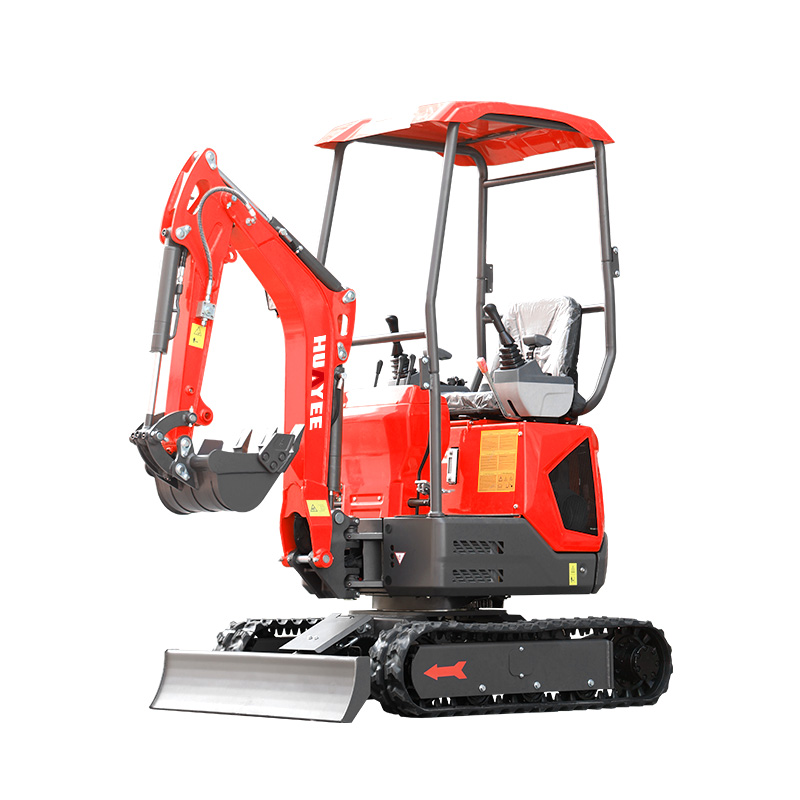

    • 2.HY12U-Mini-Excavator

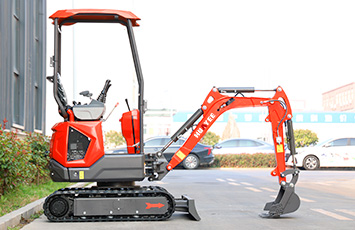

    • 3.HY12U-Mini-Excavator

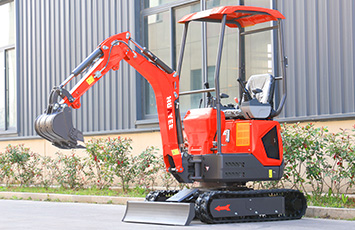

    • 4.HY12U-Mini-Excavator

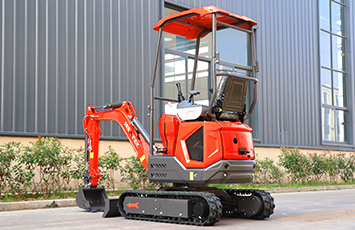

    • 5.HY12U-Mini-Excavator
HY12U MINI EXCAVATOR Request Price
NAME
PHONE
EMAIL
MESSAGE
NAME
PHONE
EMAIL
MESSAGE
navigation /products/mini excavator

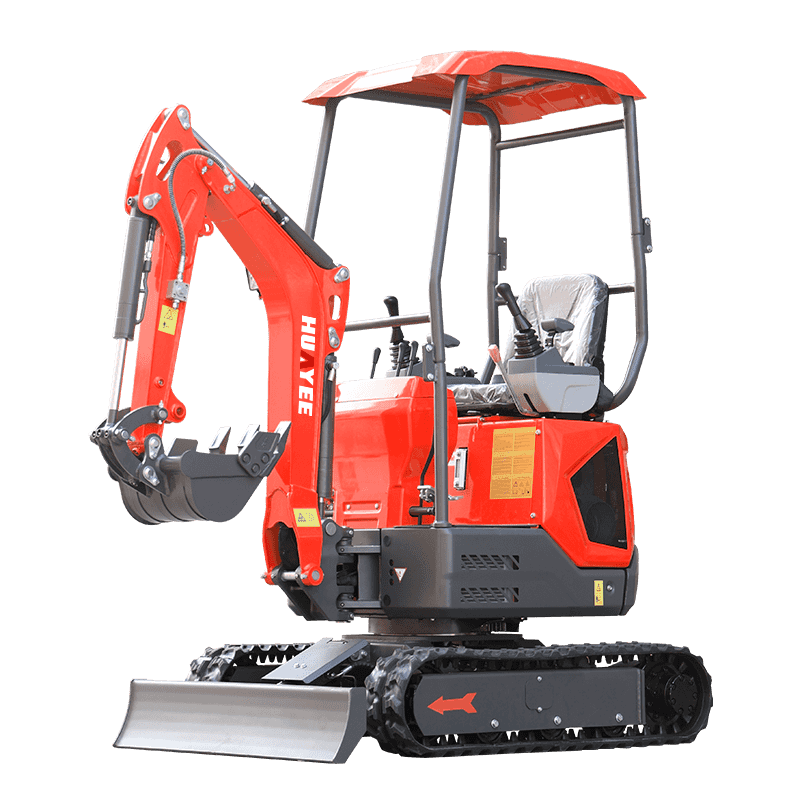

HY12U MINI EXCAVATOR

Flexible And Powerful


HY12U is a mini model excavator,It is suitable for working in outdoor environments such as farms and yards.

  • Operating Weight 1200KG
  • Bucket Capacity 0.022m³
  • Power 10.2/11HP
contact us
NAME
PHONE
EMAIL
MESSAGE
NAME
PHONE
EMAIL
MESSAGE

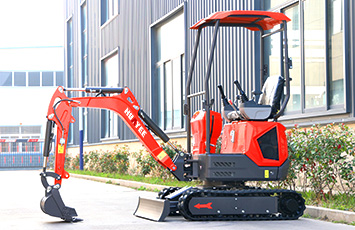

  • 1.HY12U-Mini-Excavator
  • 2.HY12U-Mini-Excavator

  • CUSTOMIZATION SUPPORTED

    Logo/color/engine/accessories/etc


    We can provide you with exclusive customization services,and will produce the products you want according to your requirements, including but not limited to logo customization, color customization ,engine customization and accessories customization.

  • EPA/EURO V ENGINE.CE CERTIFICATED


    Standard configuration includes a Koop engine, which is energy-efficient and highly effective; a Kubota engine is also available as an option to meet local market demands. These brand-name engines are durable and offer convenient after-sales service.

  • SIMPLE CONTROL，EASY MAINTENANCE


    Compact dimensions, Safety Frame, rear opening engine compartment design Daily inspection and maintenance are simple and quick.

About Accessories
  • 2.HY12U-Mini-Excavator
  • 2.HY12U-Mini-Excavator
  • 2.HY12U-Mini-Excavator
  • 2.HY12U-Mini-Excavator
  • 2.HY12U-Mini-Excavator
  • 2.HY12U-Mini-Excavator
  • 2.HY12U-Mini-Excavator
  • 2.HY12U-Mini-Excavator
  • 2.HY12U-Mini-Excavator
  • 2.HY12U-Mini-Excavator
parameters
Parameter
Operating Weight 1200 kg
Bucket Capacity 0.022m³
Length of Crawler 1400mm
Min.Tail Swing Radius 730mm
Width of Crawler 180mm
Max.Grade Ability 30°
Dimensions2840*1100*2200mm
Engine
Model KOOP192F/KUBOTA Z482
 Rated Power 7.6kW/8.2kW
Travel Speed 1.8km/h
Swing Speed 8r/min
Fuel Tank 17.5L
Hydraulic Oil Tank 12L
Performance Specifications
Max.Digging Height 2750mm
Max.Dumping Height 2020mm
Max.Digging Depth 1630mm
Max.Vertical Wall Digging Depth1545mm
Max.Digging Radius 3035mm
Max.Swing Radius 1250mm
