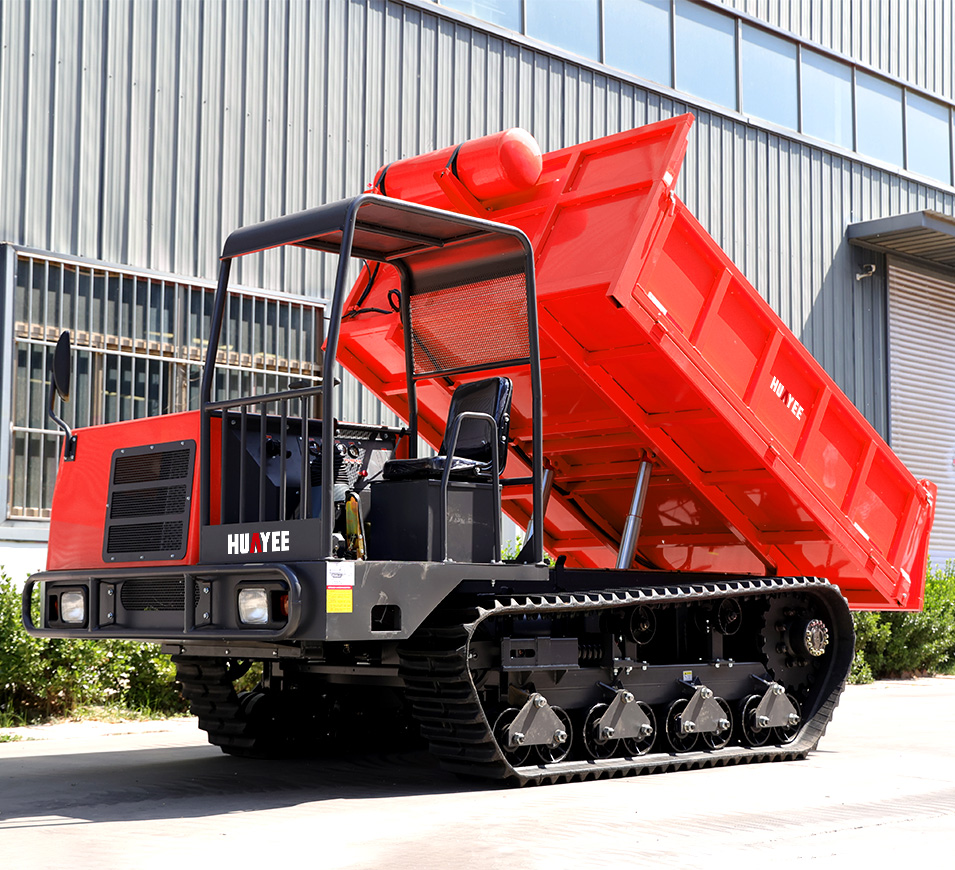

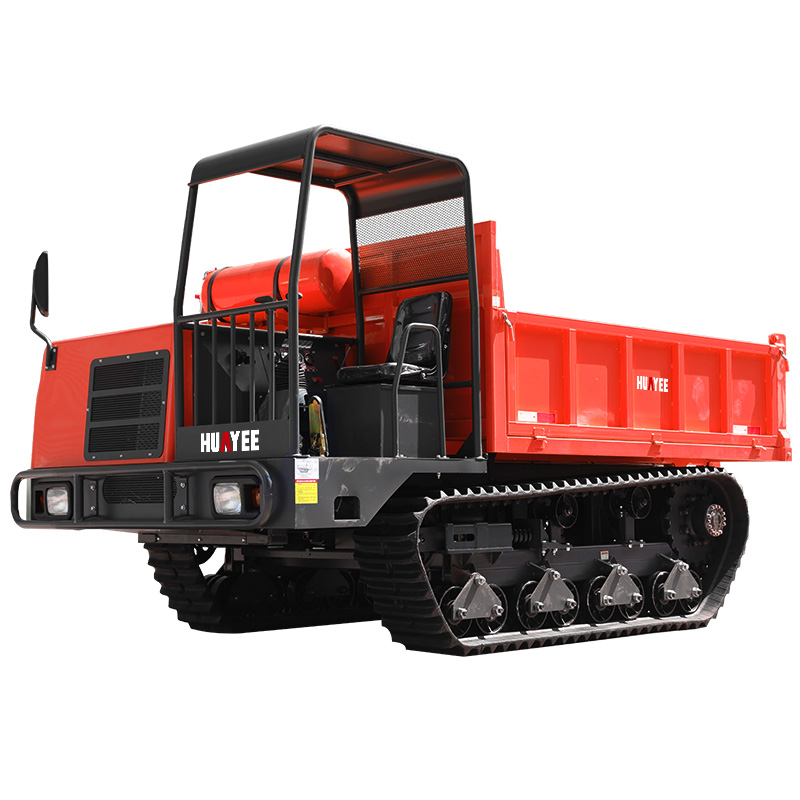

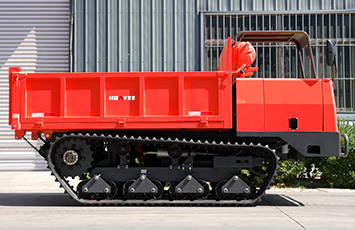

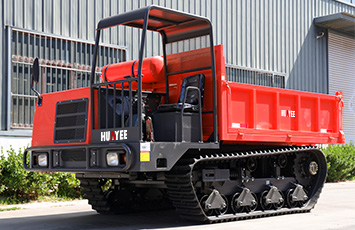

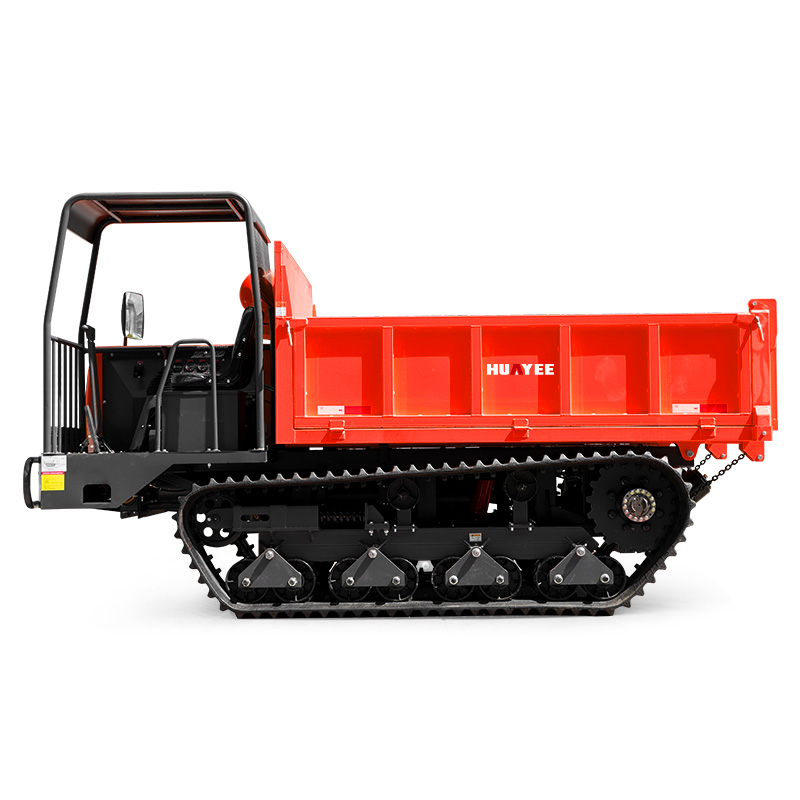

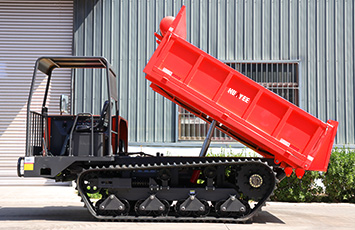

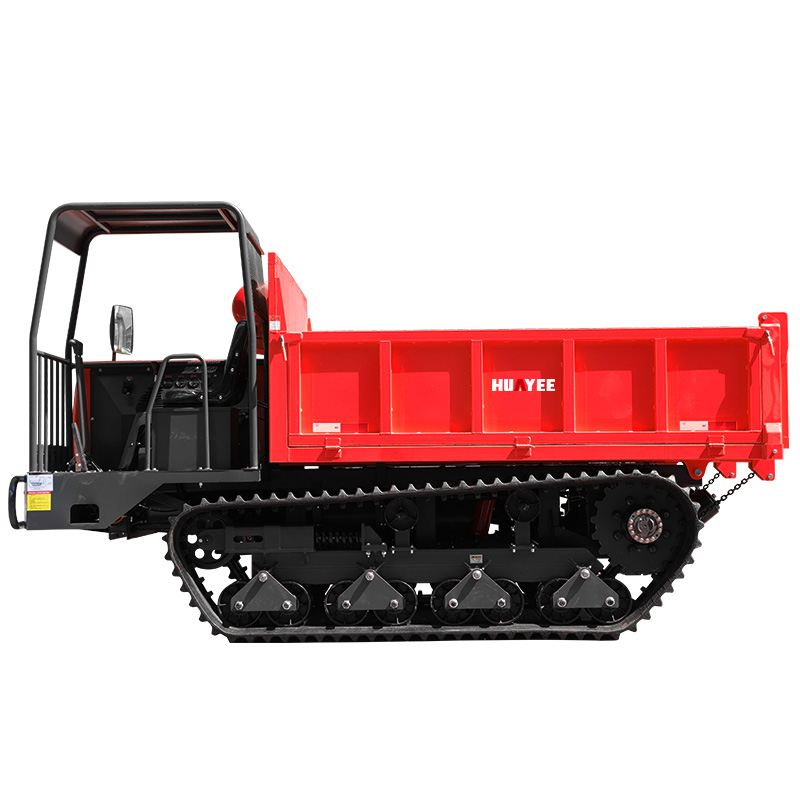

HY-D80 Mini Dumper -

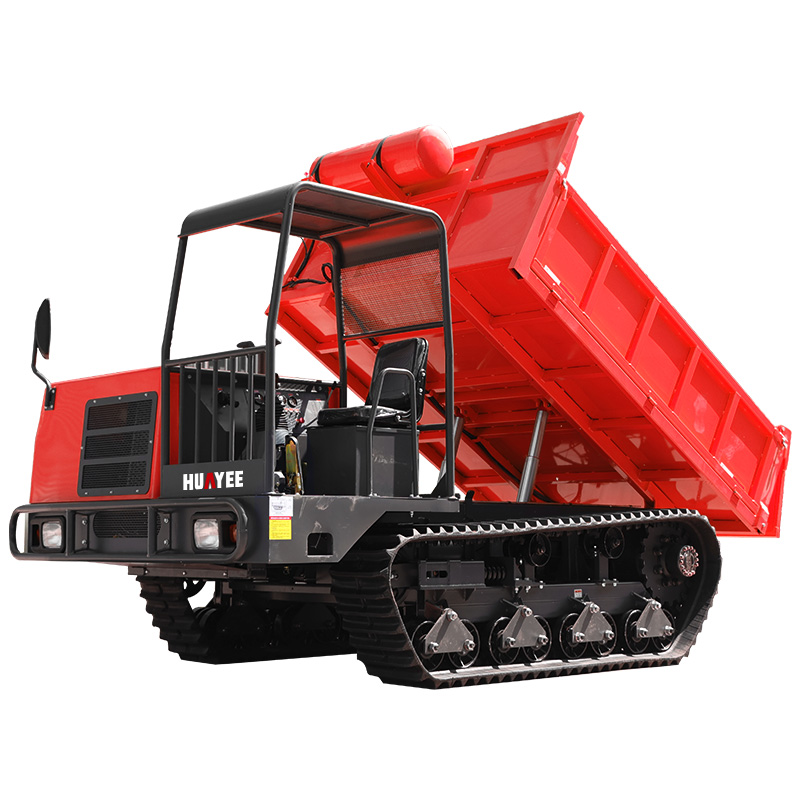

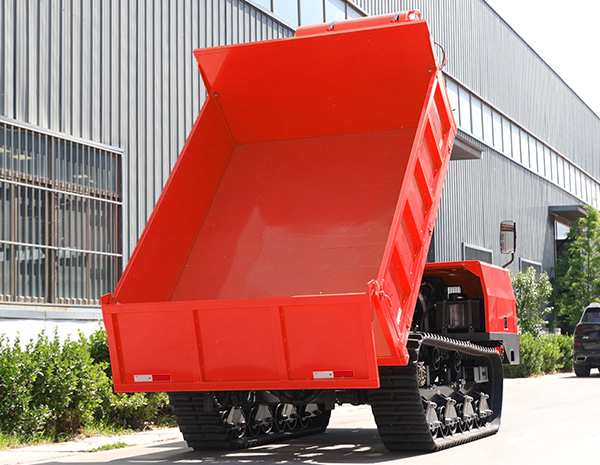

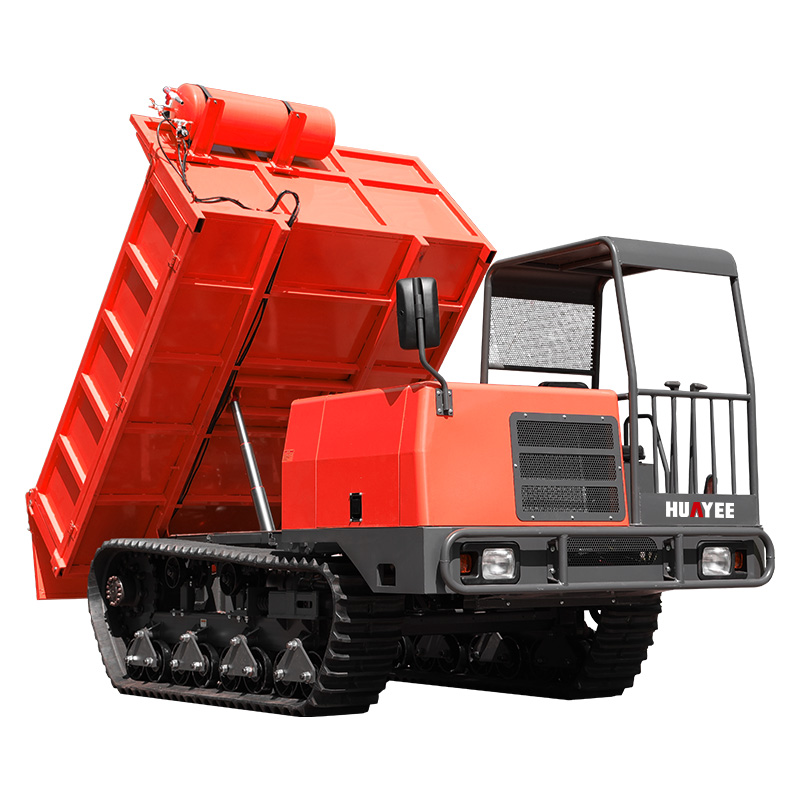

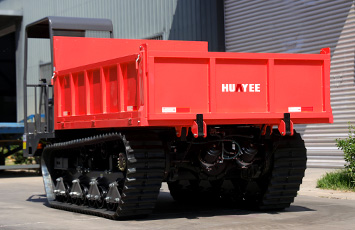

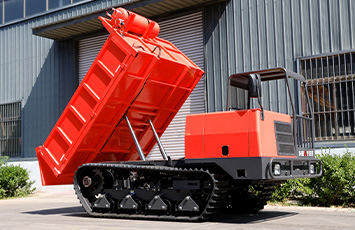

HY-D80 Mini Dumper
Mini crawler dumper truck is a dump truck made of rubber crawler chassis, suitable for short-distance transportation of complex terrain such as building material stores, farms, construction sites, etc.
No operating license required Easy to operate Factory direct sale Support customization With CE, Epa/Euro V With various accessories
-
HY-D80 Mini Dumper
- Max Loading Capacity 8000kg
- Dimensions 2700*2050*600mm
- Engine Power 118.8HP
-
-
-
Hydrostatic Drive
·Simply start and off you go: Because of the hydrostatic drive system, no frequent gear changing is needed and the operator can focus on the task.
·The hydraulic drive system and the working hydraulics can be operated independently of each other.
-
-
-
Small Dimensions
·The compact dimensions of the machine make it ideal for maneuvering and working in confined spaces.
·This gives better possibilities to maneuver the machine in narrow applications.
·The machine can be operated without restrictions even in narrow places. -
-
-

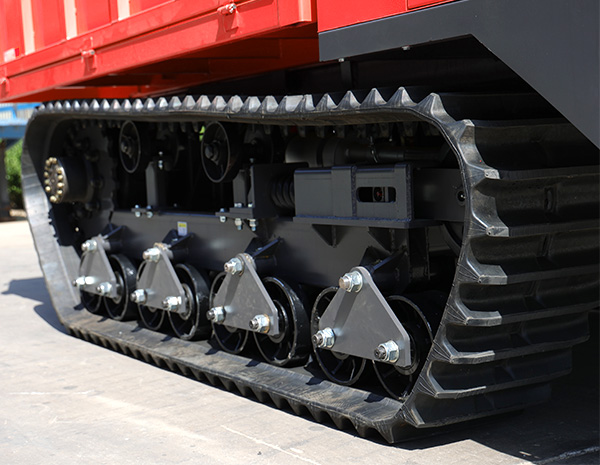

Track Width
·Due to the wide tracks, the machine produces very low ground pressure, which reduces ground disturbance during repair work.
·This also leads to a more comfortable and smoother driving experience and protects the machine and operator.
Model | HY-D80 Mini Dumper |
Max Loading Capacity | 8000kg |
Engine Power | 118.8HP |
Carriage Dimensions | 2700*2050*600mm |
Engine | 4105 Turbocharged |
Track | 400*90*68/70 |
Overall Dimensions | 4130*2060*2430mm |
Drive Axle | 145 Reinforced Rear Axle |
Gears | 5 Forward Gears, 1 Reverse Gear |
Walking Speed | 35km/h |
Minimum Ground Clearance | 330/350mm |
Uphill Gradient | 35° |
Number of Track Rollers | 8 |

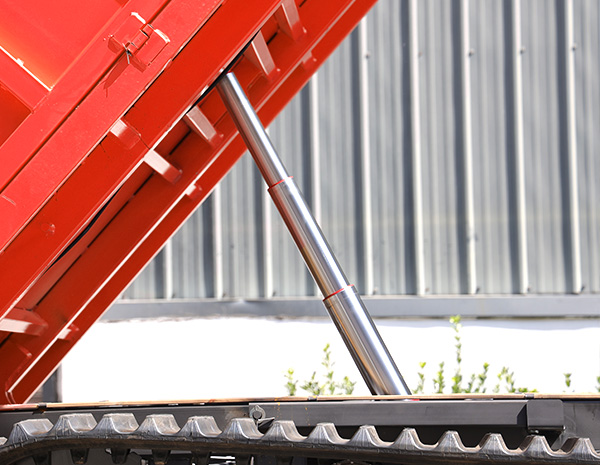

Hydraulic Cylinder | Large 900 Dual-Cylinder Self-Unloading |
Track Roller Bearing | 6308-2RS |
Tensioner Bearing | 6207-2RS |
Weight | 4000kg |
